Individual armrest, center console for BMW 3 Series E90 318i (2008)

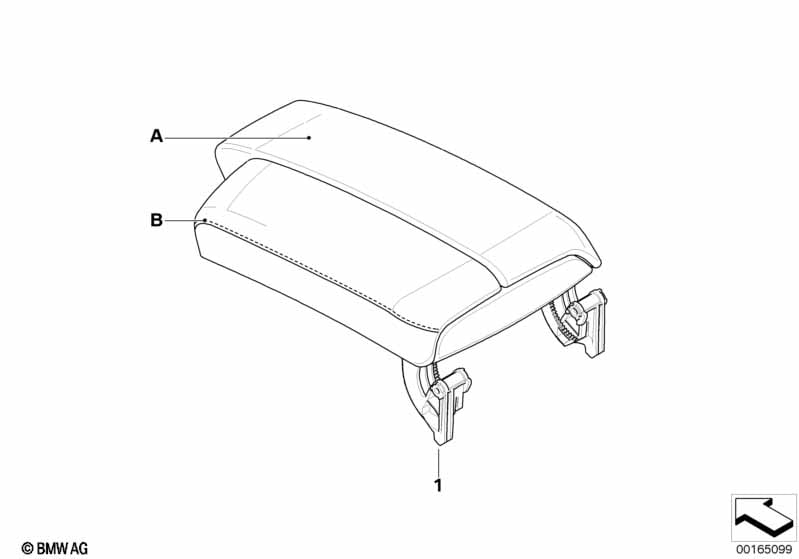

This Individual armrest, center console technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- For vehicles with Armrest front, retractable |
S4AEA=Yes |
||||||||
| For vehicles with Armrest front, retractable |
S4AEA=Yes |
|||||||||
| 01 | Armrest in leather, front center | INDIVIDUAL | 1 | 09/2005 | 51167969434 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Individual armrest, center console?
- This technical diagram illustrates the Individual armrest, center console within the Individual equipment group for the 3 Series E90 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Armrest in leather, front center (Part #51167969434).
- Which models use the hardware listed in this Individual armrest, center console?
- The hardware and components featured in the Individual armrest, center console are specific to the 3 Series E90 318i produced during 2008. These technical specifications ensure that parts like the Armrest in leather, front center (51167969434) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual armrest, center console assembly?
- Each item in the Individual armrest, center console corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Armrest in leather, front center by locating its position on the schematic, which then links to the official BMW part number 51167969434 for the Individual equipment section.
