Individual sports seat cover, front for BMW 3 Series E93 330i (2010)

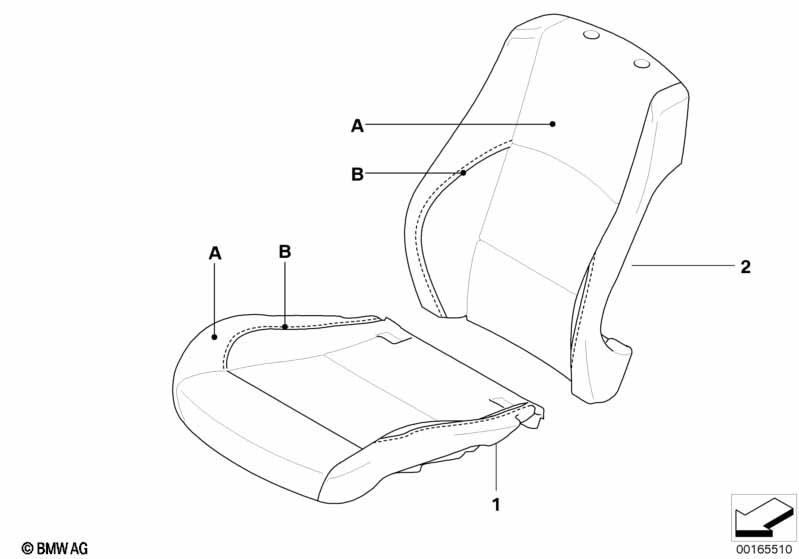

This Individual sports seat cover, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) color spec. for twist.quilt. yarn |
|||||||||
| 01 | Sports seat cover leather left | INDIVIDUAL | 1 | 12/2006 | 52107965383 | NoS | Shop at ECS Tuning | |||
| 01 | Sports seat cover leather right | INDIVIDUAL | 1 | 12/2006 | 52107965384 | NoS | Shop at ECS Tuning | |||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Sports seat cover leather right | INDIVIDUAL | 1 | 12/2006 | 52107965396 | NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather left | INDIVIDUAL | 1 | 12/2006 | 52107965393 | NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather right | INDIVIDUAL | 1 | 12/2006 | 52107965394 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 330i Individual sports seat cover, front?
- This technical diagram illustrates the Individual sports seat cover, front within the Individual equipment group for the 3 Series E93 330i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Sports seat cover leather left (Part #52107965383).
- Which models use the hardware listed in this Individual sports seat cover, front?
- The hardware and components featured in the Individual sports seat cover, front are specific to the 3 Series E93 330i produced during 2010. These technical specifications ensure that parts like the Sports seat cover leather left (52107965383) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual sports seat cover, front assembly?
- Each item in the Individual sports seat cover, front corresponds to the numbered list below the illustration. For the 3 Series E93 330i, you can identify the Sports seat cover leather left by locating its position on the schematic, which then links to the official BMW part number 52107965383 for the Individual equipment section.
