Ind.through-loading sys. rear basic seat for BMW 3 Series E92 LCI 318i (2013)

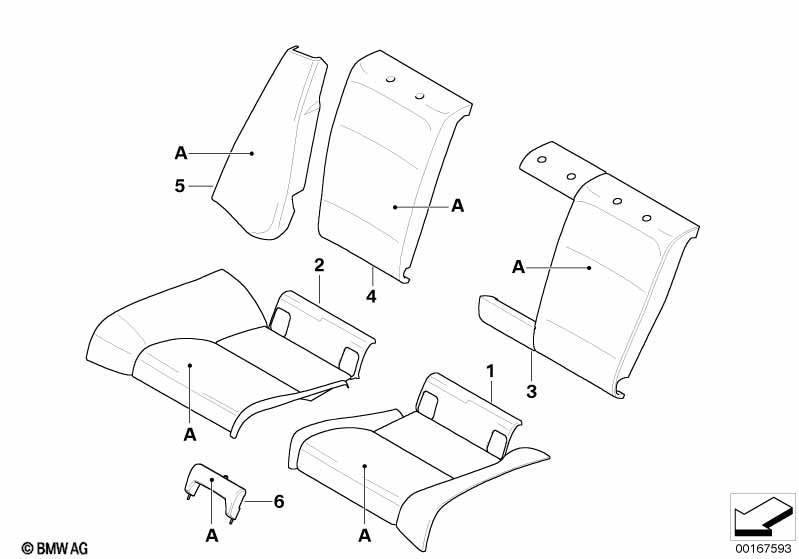

This Ind.through-loading sys. rear basic seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather For vehicles with basic seat (standard seat) |
=Yes |
||||||||
| 01 | Cover for seat, leather, rear left | INDIVIDUAL | 1 | 03/2007 | 52207966561 | NoS | Shop at ECS Tuning | |||
| 02 | Cover for seat, leather, rear right | INDIVIDUAL | 1 | 03/2007 | 52207966562 | NoS | Shop at ECS Tuning | |||
| 03 | Cover backrest, leather, rear left | INDIVIDUAL | 1 | 03/2007 | 52207966574 | NoS | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather, rear right | INDIVIDUAL | 1 | 03/2007 | 52207966573 | NoS | Shop at ECS Tuning | |||
| 05 | Side finisher, leather, left | INDIVIDUAL | 1 | 03/2007 | 52207966577 | NoS | Shop at ECS Tuning | |||
| 05 | Side finisher, leather, right | INDIVIDUAL | 1 | 03/2007 | 52207966578 | NoS | Shop at ECS Tuning | |||
| 06 | Cover insert leather | INDIVIDUAL | 1 | 03/2007 | 52207966567 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
