Indiv. door trim panel, partial leather for BMW 3 Series E92 LCI 325xi (2013)

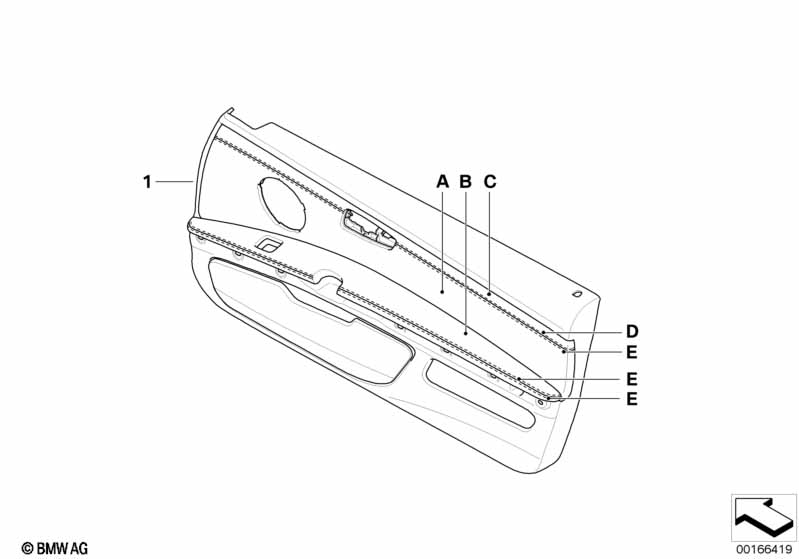

This Indiv. door trim panel, partial leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number special leather (center) - (B) Part number special leather (armrest) - (C) Part number special leather (frame) - (D) Color spec. for threads (frame) - (E) Color spec. for threads (center / armrest) --------------------------- Door rail and map pocket lower section in black applique as with LCSW --------------------------- |
|||||||||
| 01 | Door lining leather left | INDIVIDUAL | 1 | 12/2006 | 51417965667 | $1019.33 | NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather right | INDIVIDUAL | 1 | 12/2006 | 51417965668 | $1019.33 | NoS | Shop at ECS Tuning | ||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Door trim panel leather left | INDIVIDUAL | 1 | 12/2006 | 51417975227 | NoS | Shop at ECS Tuning | |||
| 01 | Door trim panel leather right | INDIVIDUAL | 1 | 12/2006 | 51417975228 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
