Individual door trim, all-leather for BMW 3 Series E92 320i (2010)

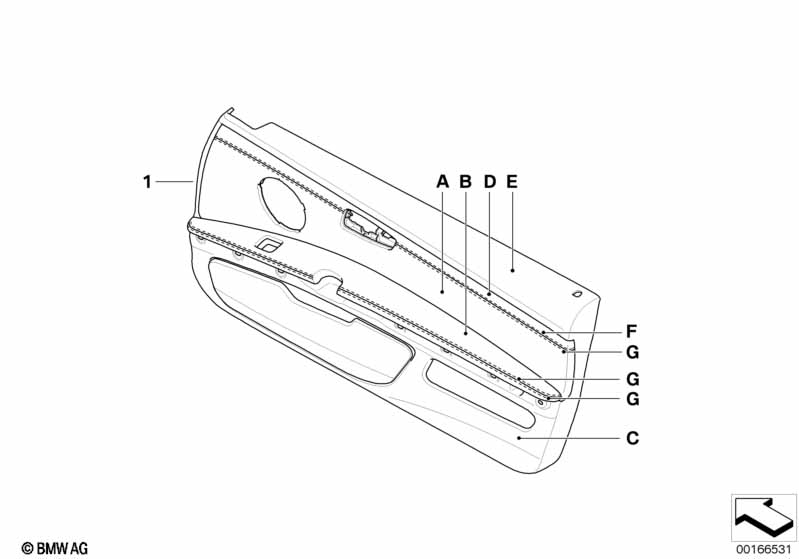

This Individual door trim, all-leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather Merino (center) - (B) Part number, leather Merino (armrest) - (C) Part number, leather Merino (lower trim) - (D) Part number, leather Merino (cowl) - (E) Part number, leather Walknappa Shrinkage-resistant (door rail) - (F) Velours (upper cowl cover) - (G) Velours --------------------------- Remaining door trim as LCSW --------------------------- |
|||||||||
| 01 | Door lining leather left | INDIVIDUAL | 1 | 12/2006 | 51417965679 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | INDIVIDUAL | 1 | 12/2006 | 51417965680 | NoS | Shop at ECS Tuning | |||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Door lining leather left | INDIVIDUAL | 1 | 12/2006 | 51417965681 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | INDIVIDUAL | 1 | 12/2006 | 51417965682 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
