Indiv.lateral trim panel,partial leather for BMW 3 Series E93 320i (2010)

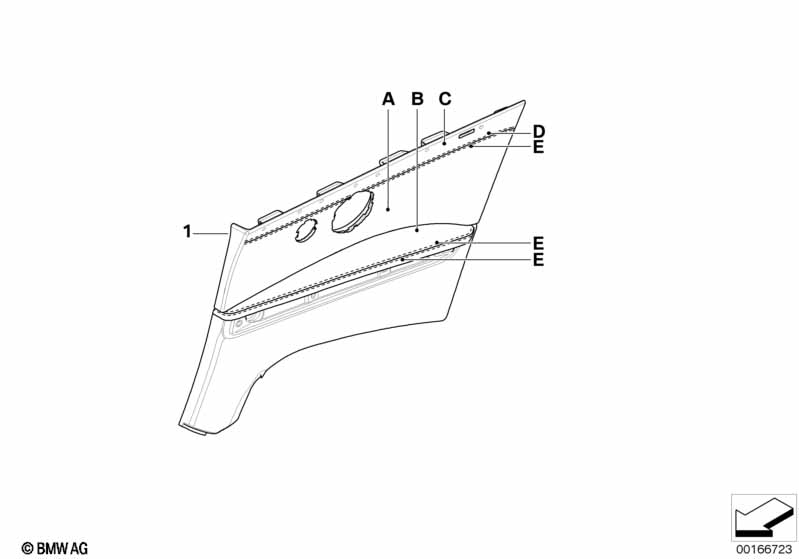

This Indiv.lateral trim panel,partial leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number special leather (center) - (B) Part number special leather (armrest) - (C) Part number special leather (frame) - (D) Color spec. for threads (frame) - (E) Color spec. for threads (center / armrest) --------------------------- Side trim, lower applique, in black as with LCSW --------------------------- Trim for waist rail, see ITU 51_6552 --------------------------- |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 12/2006 | 51437965683 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 12/2006 | 51437965684 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 12/2006 | 51437965691 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 12/2006 | 51437965692 | NoS | Shop at ECS Tuning | |||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 12/2006 | 51437965685 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 12/2006 | 51437965686 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 12/2006 | 51437965693 | NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 12/2006 | 51437965694 | NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
