Indiv.lateral trim panel,partial leather for BMW 3 Series E92 LCI 325i (2013)

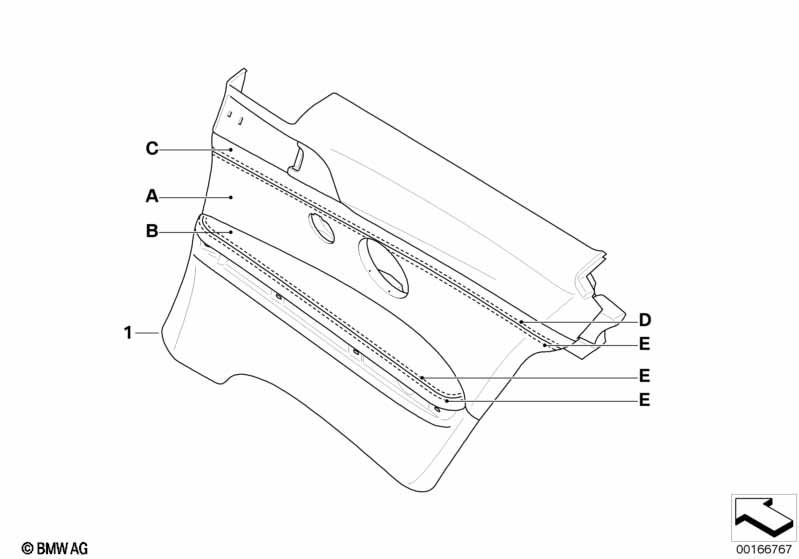

This Indiv.lateral trim panel,partial leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number special leather (center) - (B) Part number special leather (armrest) - (C) Part number special leather (frame) - (D) Color spec. for threads (frame) - (E) Color spec. for threads (center / armrest) --------------------------- Side trim covers, lower, and trim for rail in black applique, as with LCSW --------------------------- |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966983 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966984 | +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966985 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966986 | +core, NoS | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system |
S676A=Yes S677A=Yes S688A=Yes S752A=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966987 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966988 | +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Light package and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S563A=Yes S676A=Yes S677A=No S688A=No S752A=No |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966989 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966990 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S563A=Yes S676A=No S677A=Yes S688A=No S752A=No |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966989 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966990 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S563A=Yes S676A=No S677A=No S688A=Yes S752A=No |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966989 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966990 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S563A=Yes S676A=No S677A=No S688A=No S752A=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 07/2007 | 51437966989 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 07/2007 | 51437966990 | +core, NoS | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
