Ind. headrest, sports seat, rear for BMW 3 Series E93 LCI 320i (2013)

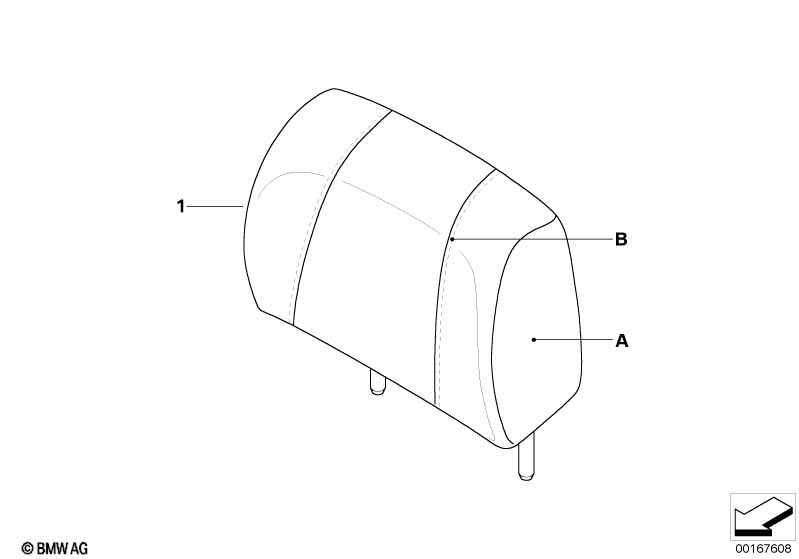

This Ind. headrest, sports seat, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| 01 | Headrest, rear leather | INDIVIDUAL | 1 | 12/2006 | 52207965422 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 LCI 320i Ind. headrest, sports seat, rear?
- This technical diagram illustrates the Ind. headrest, sports seat, rear within the Individual equipment group for the 3 Series E93 LCI 320i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Headrest, rear leather (Part #52207965422).
- Which models use the hardware listed in this Ind. headrest, sports seat, rear?
- The hardware and components featured in the Ind. headrest, sports seat, rear are specific to the 3 Series E93 LCI 320i produced during 2013. These technical specifications ensure that parts like the Headrest, rear leather (52207965422) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ind. headrest, sports seat, rear assembly?
- Each item in the Ind. headrest, sports seat, rear corresponds to the numbered list below the illustration. For the 3 Series E93 LCI 320i, you can identify the Headrest, rear leather by locating its position on the schematic, which then links to the official BMW part number 52207965422 for the Individual equipment section.
