Indi. seat with patterned piping, rear for BMW 6 Series E64 LCI 630i (2010)

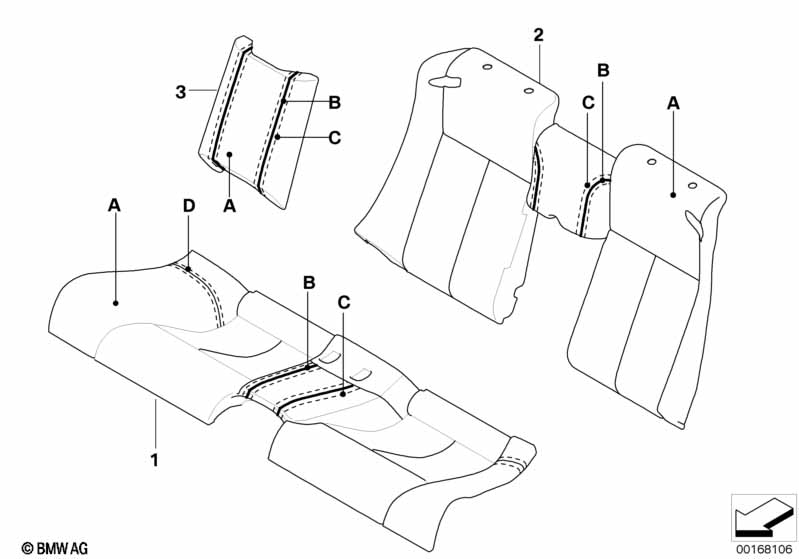

This Indi. seat with patterned piping, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part Number Leather - (B) Part Number Leather, (piping) - (C) Color specification, thread, (with piping) - (D) Color specification, thread, (seat bolster) --------------------------- Version: only in leather Merino |
|||||||||
| with patterned piping | ||||||||||
| 01 | Leather cover, rear seat | INDIVIDUAL | 1 | 09/2007 | 52207972305 | $1656.48 | NoS | Shop at ECS Tuning | ||
| 02 | Leather cover, rear backrest | INDIVIDUAL | 1 | 09/2007 | 52207972307 | $1586.56 | NoS | Shop at ECS Tuning | ||
| For vehicles with National version Australia with patterned piping |
L810A=Yes |
|||||||||
| 02 | Leather cover, rear backrest | INDIVIDUAL | 1 | 09/2007 | 52207972309 | NoS | Shop at ECS Tuning | |||
| with patterned piping | ||||||||||
| 03 | Cover insert leather | INDIVIDUAL | 1 | 09/2007 | 52207972311 | $196.89 | NoS | Shop at ECS Tuning | ||
Notes
- NoS = No Stock (Part centrally not stocked)
