Individual console, rear for BMW 3 Series E93 335i (2010)

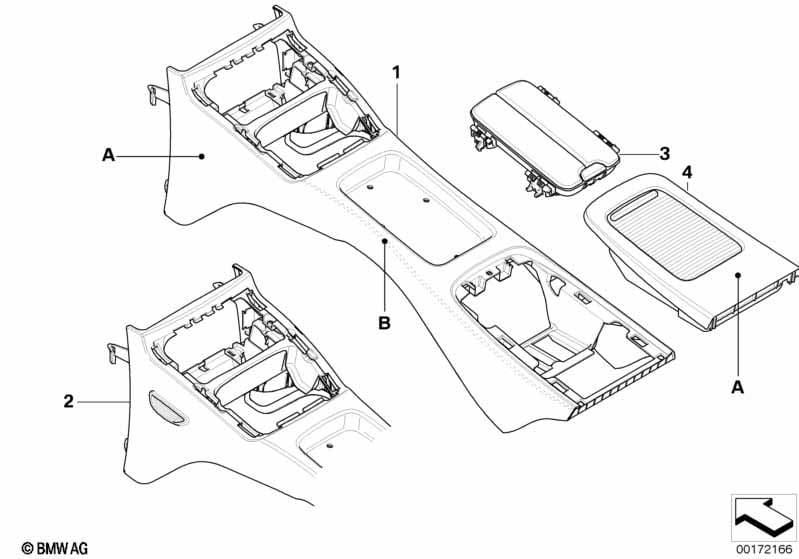

This Individual console, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number Leather - (B) Color spec. velours --------------------------- |
|||||||||
| 01 | Console rear | INDIVIDUAL | 1 | 12/2006 | 51167965427 | NoS | Shop at ECS Tuning | |||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 02 | Console rear | INDIVIDUAL | 1 | 12/2006 | 51167965428 | NoS | Shop at ECS Tuning | |||
| 03 | Cup holder | SCHWARZ | 1 | 12/2006 | 51167965753 | NoS | Shop at ECS Tuning | |||
| 04 | Cover, rear console, rear | INDIVIDUAL | 1 | 12/2006 | 51167965424 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
