Individual cover rear console for BMW 3 Series E93 325i (2010)

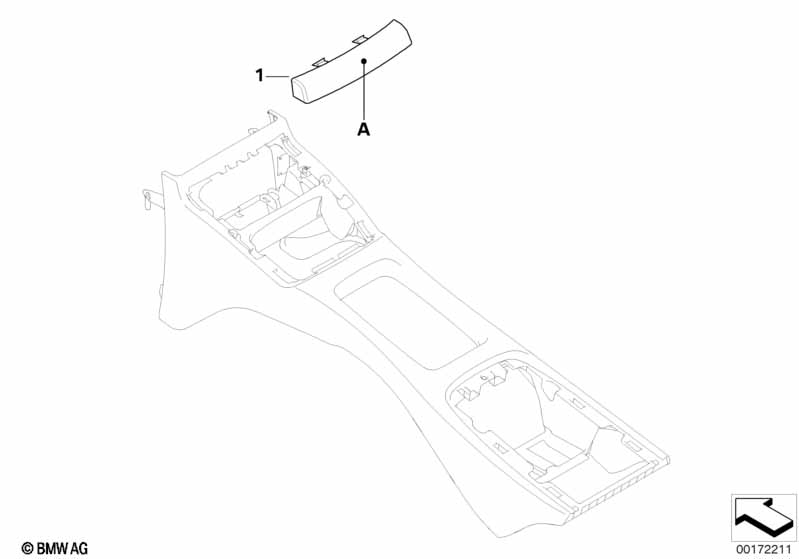

This Individual cover rear console technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) = Color soft paint --------------------------- |
|||||||||
| 01 | Cover, front | INDIVIDUAL | 1 | 12/2006 | 51167965429 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 325i Individual cover rear console?
- This technical diagram illustrates the Individual cover rear console within the Individual equipment group for the 3 Series E93 325i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Cover, front (Part #51167965429).
- Which models use the hardware listed in this Individual cover rear console?
- The hardware and components featured in the Individual cover rear console are specific to the 3 Series E93 325i produced during 2010. These technical specifications ensure that parts like the Cover, front (51167965429) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual cover rear console assembly?
- Each item in the Individual cover rear console corresponds to the numbered list below the illustration. For the 3 Series E93 325i, you can identify the Cover, front by locating its position on the schematic, which then links to the official BMW part number 51167965429 for the Individual equipment section.
