Individual cover, Sport seat, front LC for BMW 3 Series E93 325d (2010)

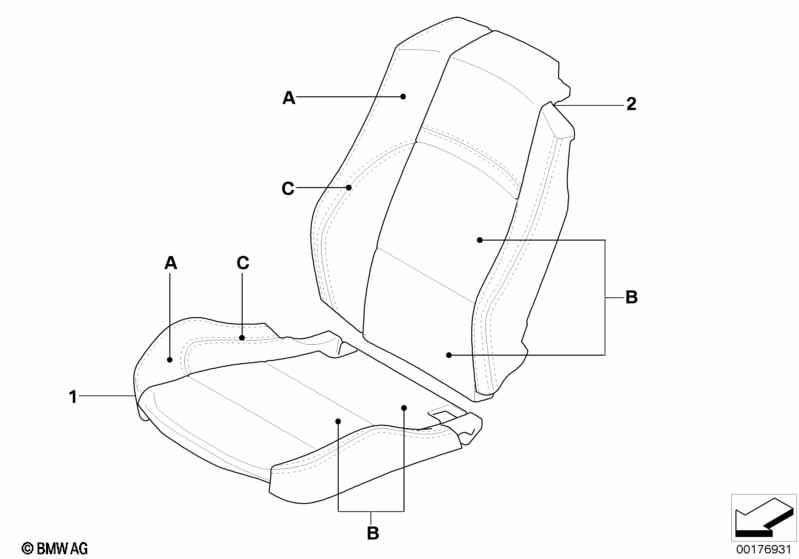

This Individual cover, Sport seat, front LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Part number, leather (with Bicolor) - (C) Color data for threads = suitable --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- Version with seat heating (also suitable for vehicles without seat heating) For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Cover for Sport seat in leather, left | LC | 1 | 09/2007 | 52107974487 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Cover for Sport seat in leather, right | LC | 1 | 09/2007 | 52107976228 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather left | LC | 1 | 09/2007 | 52107974489 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather right | LC | 1 | 09/2007 | 52107974490 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
