Indi. side trim, part leather, LC for BMW 3 Series E93 328i (2010)

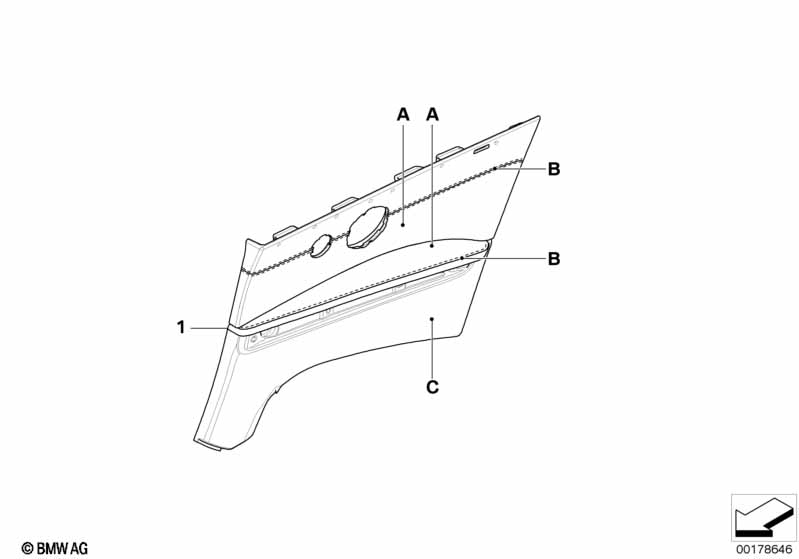

This Indi. side trim, part leather, LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Color data for side trim, rear --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- Side trim, lower, in PVC foil --------------------------- Trim for waist rail, see ITU 51_6552 --------------------------- For vehicles with Light package |
S563A=Yes |
||||||||
| 01 | Lateral trim panel leather rear left | LC | 1 | 09/2007 | 51437975121 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | LC | 1 | 09/2007 | 51437975122 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
