Individual door trim, part leather LC for BMW 3 Series E92 330i (2010)

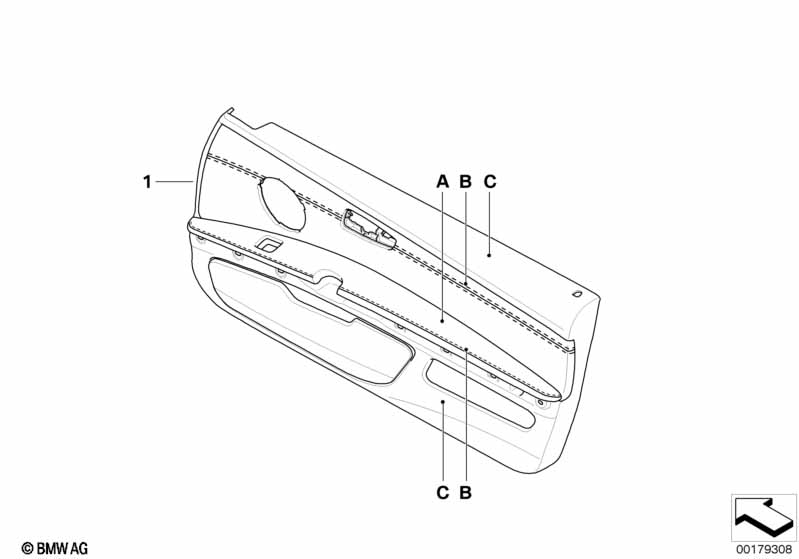

This Individual door trim, part leather LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Color data for lower door trim --------------------------- Version: - Seam pattern = LC . Trim cover, center, and armrest (A) - in Dakota leather . Carrier/door panel (C) - in PVC applique --------------------------- For vehicles with Light package |
S563A=Yes |
||||||||
| 01 | Door lining leather left | LC | 1 | 09/2007 | 51417978007 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | LC | 1 | 09/2007 | 51417978008 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 330i Individual door trim, part leather LC?
- This technical diagram illustrates the Individual door trim, part leather LC within the Individual equipment group for the 3 Series E92 330i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Door lining leather left (Part #51417978007).
- Which models use the hardware listed in this Individual door trim, part leather LC?
- The hardware and components featured in the Individual door trim, part leather LC are specific to the 3 Series E92 330i produced during 2010. These technical specifications ensure that parts like the Door lining leather left (51417978007) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual door trim, part leather LC assembly?
- Each item in the Individual door trim, part leather LC corresponds to the numbered list below the illustration. For the 3 Series E92 330i, you can identify the Door lining leather left by locating its position on the schematic, which then links to the official BMW part number 51417978007 for the Individual equipment section.
