Individual floor mats with applique for BMW 6 Series E64 LCI 650i (2010)

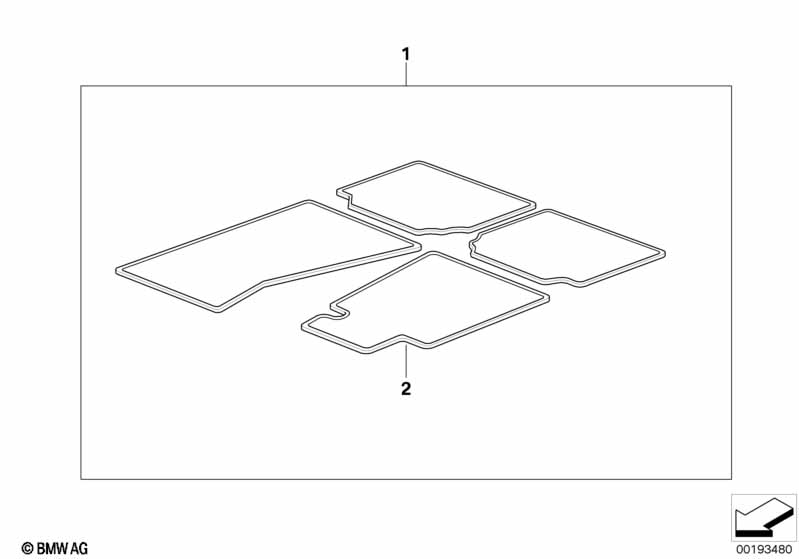

This Individual floor mats with applique technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 |
|||||||||
| Applique: Clef symbol Piping: Leather platin |
||||||||||
| 01 | Set of floor mats Velours | VIRTUOSO/PLATIN | 1 | 51477960688 | NoS | Shop at ECS Tuning | ||||
| Applique: Clef symbol Piping: Leather criollobraun |
||||||||||
| 01 | Set of floor mats Velours | VIRTUOSO/CRIOLO | 1 | 51477960690 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
