Individual wood roof-handle for BMW 7 Series F02 LCI 730Li (2015)

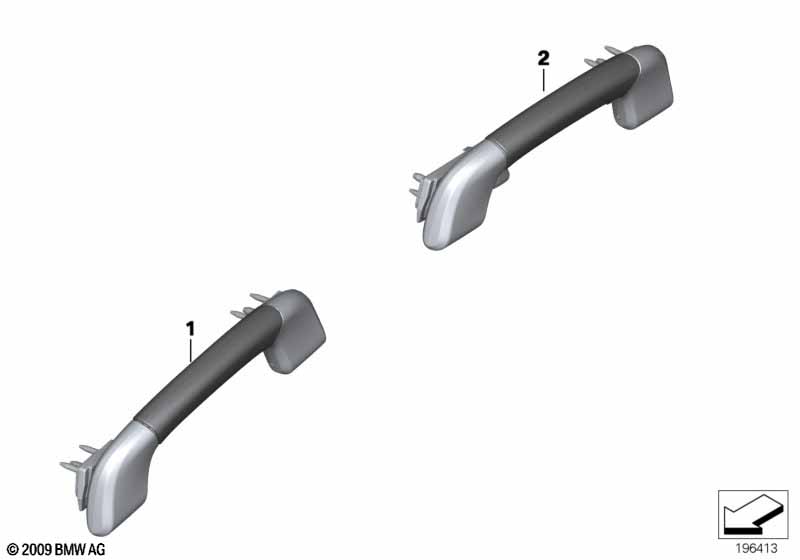

This Individual wood roof-handle technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.

Individual wood roof-handle
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------------
Standard parts are also installed in
individual vehicles. It is necessary to
check beforehand that the required
spare part is not a standard part.
---------------------------
For vehicles with
special equipment BMW Individual
or
Indi. fine wood sycamore red-brown dark
or
Indi. fine wood satin walnut honigbraun
or
Indi. Int. piano lacquer, black, tarsia
or
Individual fine ash woodgrain in white






S940A=Yes

SXE5A=Yes

SXE6A=Yes

SXE8A=Yes

SXEXA=Yes
everest-grau
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967623 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967869 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976889 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983499 NoS Shop at ECS Tuning
black
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967629 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967875 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976895 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983501 NoS Shop at ECS Tuning
oyster
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967617 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967863 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976883 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983497 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
everest-grau
S403A=Yes
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967624 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967870 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976890 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983500 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
black
S403A=Yes
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967630 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967876 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976896 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983502 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
oyster
S403A=Yes
01 Grab handle, front NUSSB.-HONIGBR. 2 03/2009 51167967618 NoS Shop at ECS Tuning
01 Grab handle, front PIANOLACK SW 2 03/2009 51167967864 NoS Shop at ECS Tuning
01 Grab handle, front PLATANE-ROTBR. 2 03/2009 51167976884 NoS Shop at ECS Tuning
01 Grab handle, front ESCHEMASER WEIß 2 03/2013 51167983498 NoS Shop at ECS Tuning
everest-grau
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967625 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967626 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967871 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967872 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976891 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976892 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 03/2013 51167983507 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983508 NoS Shop at ECS Tuning
black
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967631 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967632 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967877 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967878 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976897 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976898 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 03/2013 51167983511 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983512 NoS Shop at ECS Tuning
oyster
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967619 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967620 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967865 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967866 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976885 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976886 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 03/2013 51167983503 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983504 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
everest-grau
S403A=Yes
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967627 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967628 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967873 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967874 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976893 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976894 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 03/2013 51167983509 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983510 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
black
S403A=Yes
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967633 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967634 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967879 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967880 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976899 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976900 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 03/2013 51167983513 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983514 NoS Shop at ECS Tuning
For vehicles with
Glass roof, electrical
oyster
S403A=Yes
02 Handle rear left NUSSB.-HONIGBR. 1 03/2009 51167967621 NoS Shop at ECS Tuning
02 Handle rear right NUSSB.-HONIGBR. 1 03/2009 51167967622 NoS Shop at ECS Tuning
02 Handle rear left PIANOLACK SW 1 03/2009 51167967867 NoS Shop at ECS Tuning
02 Handle rear right PIANOLACK SW 1 03/2009 51167967868 NoS Shop at ECS Tuning
02 Handle rear left PLATANE-ROTBR. 1 03/2009 51167976887 NoS Shop at ECS Tuning
02 Handle rear right PLATANE-ROTBR. 1 03/2009 51167976888 NoS Shop at ECS Tuning
02 Handle rear left ESCHEMASER WEIß 1 07/2012 51167983505 NoS Shop at ECS Tuning
02 Handle rear right ESCHEMASER WEIß 1 03/2013 51167983506 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
