Individual cover, Sport seat, front LC for BMW 3 Series E90 LCI 323i (2011)

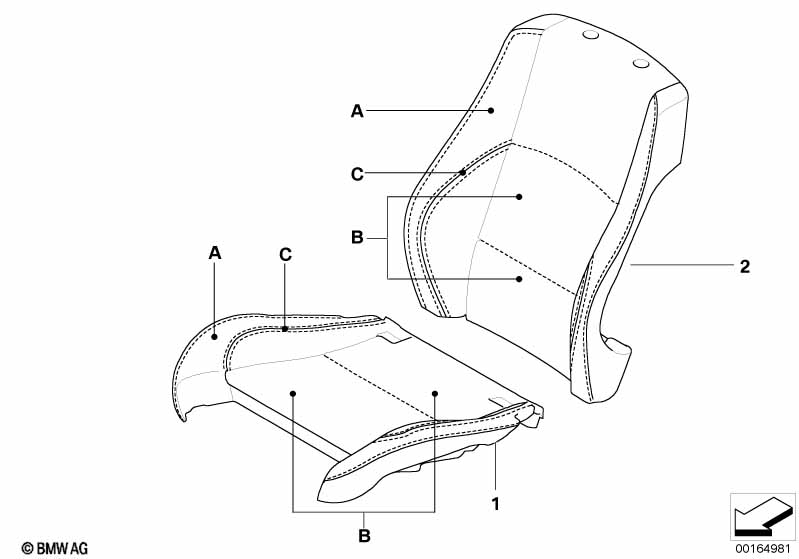

This Individual cover, Sport seat, front LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Part number, leather (with Bicolor) - (C) Color data for threads = suitable --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- Upholstery for thigh bolster, see ITU 52_3183 Sport seat upholstery --------------------------- Version with seat heating (also suitable for vehicles without seat heating) |
|||||||||
| 01 | Cover, sports seat, leather | LC | 2 | 09/2008 | 52107976331 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Seat cover, basic seat, leather | LC | 1 | 09/2008 | 52107976332 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather left | LC | 1 | 09/2008 | 52107976329 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover,backrest,sports seat,leather right | LC | 1 | 09/2008 | 52107976330 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
