Indiv. load-through for seat, rear, LC for BMW 3 Series E90 LCI 330i (2011)

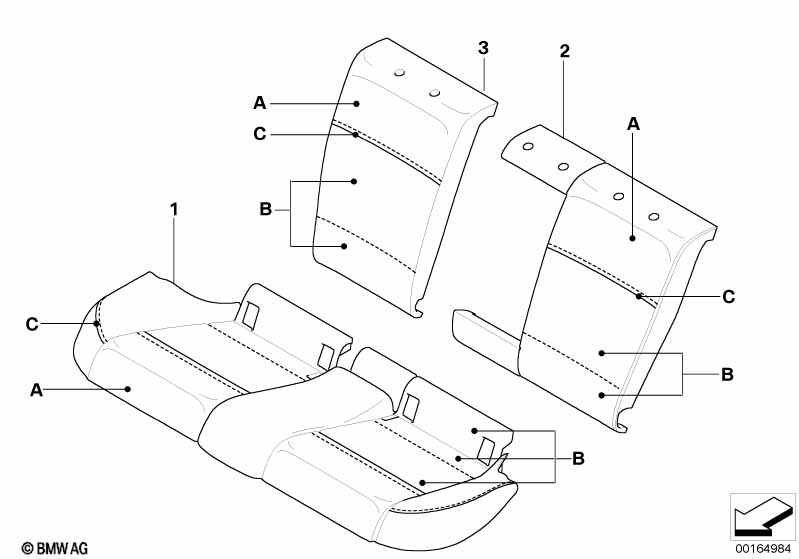

This Indiv. load-through for seat, rear, LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Part number, leather (with Bicolor) - (C) Color data for threads = suitable --------------------------- Version: only in leather Dakota Seam pattern = LC |
|||||||||
| 01 | Seat cover, basic seat, leather, rear | LC | 1 | 09/2008 | 52207976335 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear left | LC | 1 | 09/2008 | 52207976336 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Cover backrest, leather, rear right | LC | 1 | 09/2008 | 52207976337 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
