Indi. fold headrest, rear side LC for BMW 3 Series E90 LCI 330i (2011)

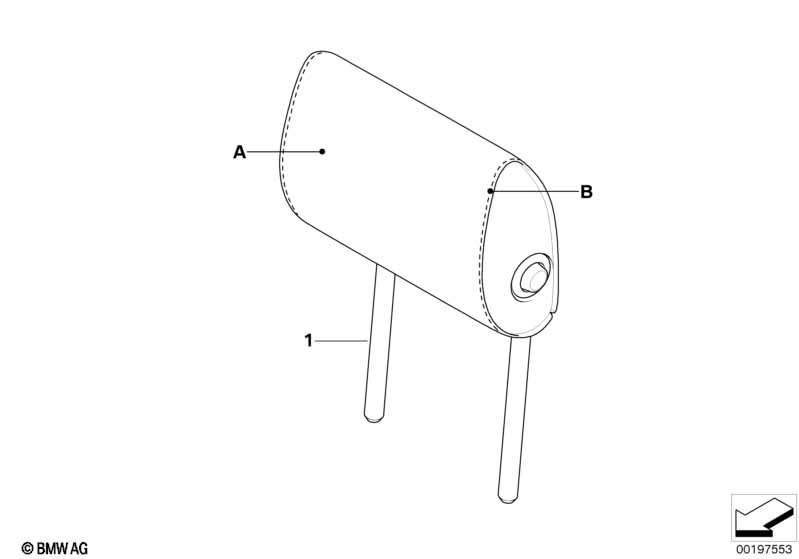

This Indi. fold headrest, rear side LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- For vehicles with Rear-seat headrests, folding |
S5DCA=Yes |
||||||||
| 01 | Folding head restr., leather, rear | LC | 2 | 09/2008 | 52207978302 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 330i Indi. fold headrest, rear side LC?
- This technical diagram illustrates the Indi. fold headrest, rear side LC within the Individual equipment group for the 3 Series E90 LCI 330i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Folding head restr., leather, rear (Part #52207978302).
- Which models use the hardware listed in this Indi. fold headrest, rear side LC?
- The hardware and components featured in the Indi. fold headrest, rear side LC are specific to the 3 Series E90 LCI 330i produced during 2011. These technical specifications ensure that parts like the Folding head restr., leather, rear (52207978302) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indi. fold headrest, rear side LC assembly?
- Each item in the Indi. fold headrest, rear side LC corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 330i, you can identify the Folding head restr., leather, rear by locating its position on the schematic, which then links to the official BMW part number 52207978302 for the Individual equipment section.
