Indi. door trim, part leather, rear, LC for BMW 3 Series E91 LCI 330xd (2008)

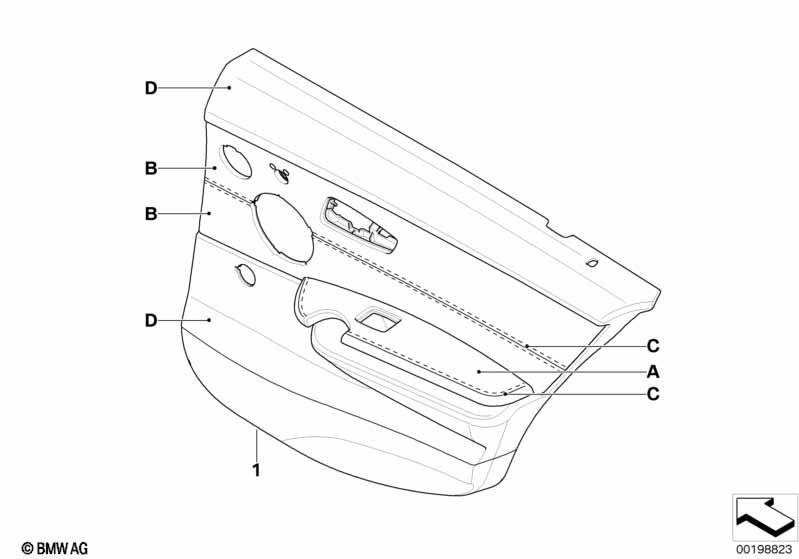

This Indi. door trim, part leather, rear, LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------------- Important! Components from series production are not available through this order no. . Series components are also installed on Individual vehicles. Always confirm in advance that the required replacement component is not a standard series component. . Door trim panels in versions: - Black / Oyster = LCCX - Black / Sattelbraun = LCD3 - Black / Rotbraun = LCCZ correspond to the series components and, if possible, should not be ordered using the individual detail numbers. ---------------------------------------- The specific data entries required when placing the order vary according to the specific requirement. . Spare part for Individual vehicle: - Part number - Dealer number - VIN . Retrofitting an Individual part: - Part number - Dealer number - VIN - (A) Part number for leather - (B) Part number for imitation leather - (C) Thread color specification = suitable - (D) Thread color spec. upper/lower section --------------------------- Version: . Armrest (A) - in leather . Trim cover center - in imitation leather (B) . Upper/lower section (D) - in PVC film --------------------------- Version in: - Leather Dakota - imitation leather Seam pattern = LC --------------------------- |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976309 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976310 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976307 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976308 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S676A=Yes S677A=Yes S688A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976313 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976314 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear door and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S417A=Yes S676A=Yes S677A=No S688A=No |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976315 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976316 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear door and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S417A=Yes S676A=No S677A=Yes S688A=No |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976315 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976316 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear door and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S417A=Yes S676A=No S677A=No S688A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 09/2008 | 51427976315 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LC | 1 | 09/2008 | 51427976316 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
