Individual floor covering for BMW 7 Series F02 LCI 760Li (2015)

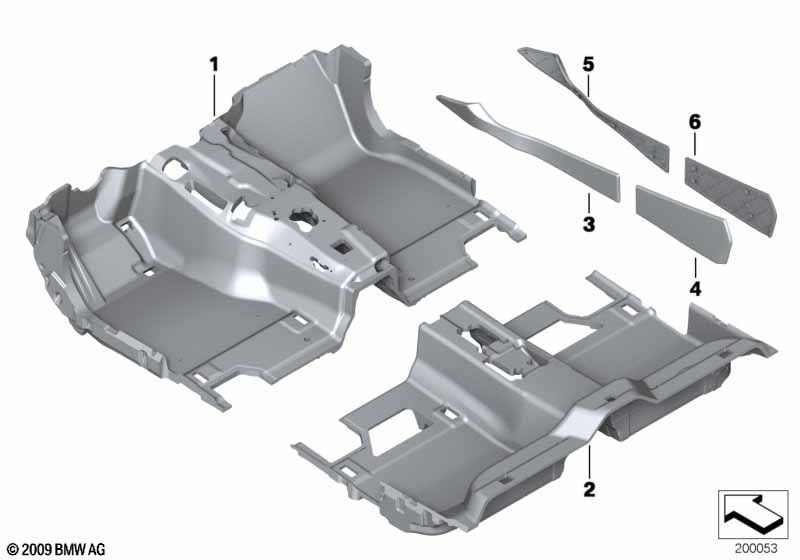

This Individual floor covering technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. |
|||||||||
| 01 | Floor trim cover, front | CHAMPAGNER | 1 | 07/2012 | 51477983606 | NoS | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | CARAMEL | 1 | 07/2012 | 51477983704 | NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | CHAMPAGNER | 1 | 07/2012 | 51477983618 | NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | CARAMEL | 1 | 07/2012 | 51477983776 | NoS | Shop at ECS Tuning | |||
| 03 | Trim panel, center console, front left | CARAMEL | 1 | 07/2012 | 51167978263 | NoS | Shop at ECS Tuning | |||
| 04 | Trim panel, center console, rear left | CARAMEL | 1 | 07/2012 | 51167978267 | NoS | Shop at ECS Tuning | |||
| 05 | Trim panel, center console, front right | CARAMEL | 1 | 07/2012 | 51167978264 | NoS | Shop at ECS Tuning | |||
| 06 | Trim panel, center console, rear right | CARAMEL | 1 | 07/2012 | 51167978268 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
