Individual cover, leather comfort seat for BMW 7 Series F01 750iX (2012)

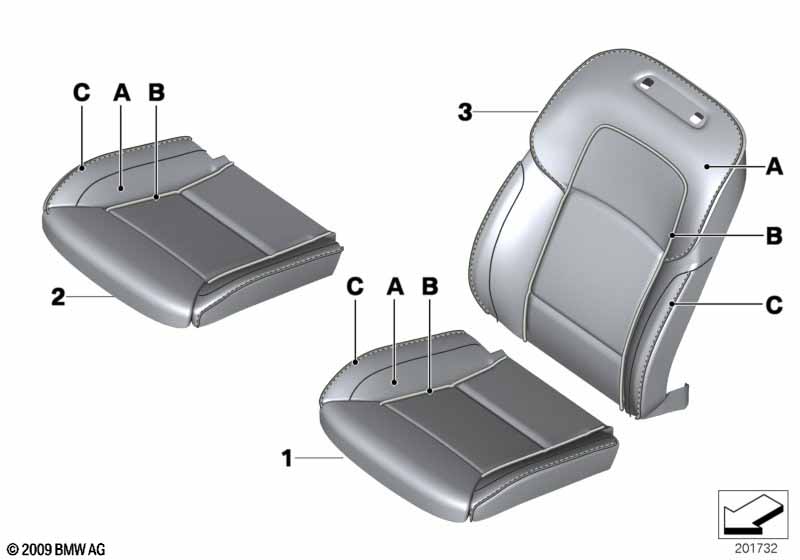

This Individual cover, leather comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 750iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part Number Leather - (B) Part Number Leather, (piping) - (C) Color specification, threads --------------------------- For vehicles with Climate-controlled seats, front and Indi. full leather/"platin/black" or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" or special trim (without colour statement) |
S453A=No ZBC8=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes Z1XX=Yes |
||||||||
| For vehicles with Comfort seat with memory Driver's side |
S456A=Yes |
|||||||||
| 01 | Cover for comfort seat, leather | INDIVIDUAL | 1 | 09/2009 | 52107979623 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory Passenger's side |
S456A=Yes |
|||||||||
| 02 | Cover for comfort seat, leather | INDIVIDUAL | 1 | 09/2009 | 52107981097 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 03 | Cover for comfort backrest, leather | INDIVIDUAL | 2 | 09/2009 | 52107979624 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Rear-compartment entertainment and Rear Professional entertainment center |
S456A=Yes S6FGA=Yes S6FHA=No |
|||||||||
| 03 | Cover for comfort backrest, leather | INDIVIDUAL | 2 | 09/2009 | 52107979624 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | 1 | 09/2009 | 01290394223 | Shop at ECS Tuning | |||||
| -- | Template | 1 | 09/2009 | 01290394224 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Rear-compartment entertainment and Rear Professional entertainment center |
S456A=Yes S6FGA=No S6FHA=Yes |
|||||||||
| 03 | Cover for comfort backrest, leather | INDIVIDUAL | 2 | 09/2009 | 52107979624 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Template | 1 | 09/2009 | 01290394223 | Shop at ECS Tuning | |||||
| -- | Template | 1 | 09/2009 | 01290394224 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
