Individual wood trim covers for BMW 3 Series E90 LCI 318i (2011)

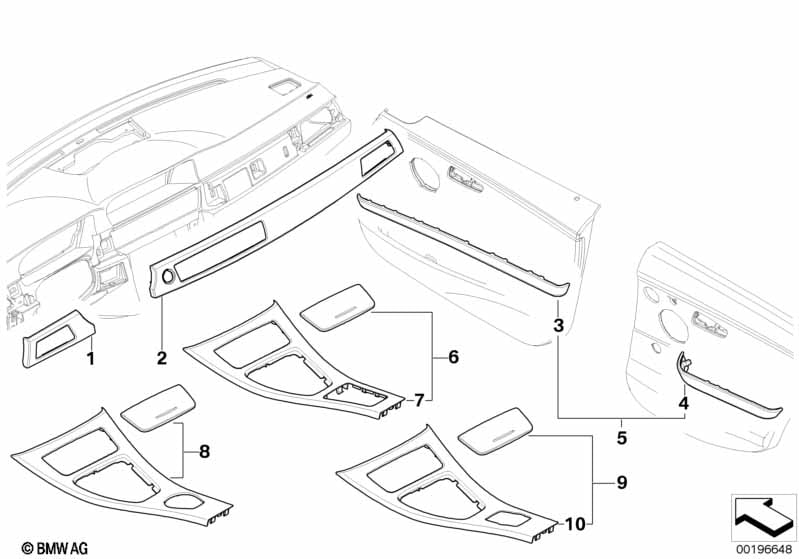

This Individual wood trim covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- For vehicles with special equipment BMW Individual or Indi. fine wood quilted maple anthracite or Indi. woodgrain, eucalyptus bar or Indi. Int. piano lacquer, black, tarsia |
S940A=Yes SXE2A=Yes SXE3A=Yes SXE8A=Yes |
||||||||
| 01 | Cover, dashboard, left | PIANOLACK SW | 1 | 09/2008 | 51457963937 | NoS | Shop at ECS Tuning | |||
| 01 | Cover, dashboard, left | ROTBRAUN | 1 | 09/2008 | 51457963961 | NoS | Shop at ECS Tuning | |||
| 01 | Cover, dashboard, left | MUSCHELAHORN | 1 | 09/2008 | 51457963985 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, right | PIANOLACK SW | 1 | 09/2008 | 51457963938 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, right | ROTBRAUN | 1 | 09/2008 | 51457963962 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, right | MUSCHELAHORN | 1 | 09/2008 | 51457963986 | NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front right | PIANOLACK SW | 1 | 09/2008 | 51417974392 | NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front left | PIANOLACK SW | 1 | 09/2008 | 51417974393 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front left | ROTBRAUN | 1 | 09/2008 | 51417974397 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front right | ROTBRAUN | 1 | 09/2008 | 51417974398 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front left | MUSCHALAHORN | 1 | 09/2008 | 51417974423 | NoS | Shop at ECS Tuning | |||
| 03 | Door trim piece, front right | MUSCHALAHORN | 1 | 09/2008 | 51417974424 | NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear right | PIANOLACK SW | 1 | 09/2008 | 51427974394 | NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear left | PIANOLACK SW | 1 | 09/2008 | 51427974395 | NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear left | ROTBRAUN | 1 | 09/2008 | 51427974399 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear right | ROTBRAUN | 1 | 09/2008 | 51427974400 | NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear left | MUSCHALAHORN | 1 | 09/2008 | 51427974425 | NoS | Shop at ECS Tuning | |||
| 04 | Door trim piece, rear right | MUSCHALAHORN | 1 | 09/2008 | 51427974426 | NoS | Shop at ECS Tuning | |||
| 05 | Set of decor finishers | PIANOLACK SW | 1 | 09/2008 | 51417974391 | NoS | Shop at ECS Tuning | |||
| 05 | Set of decor finishers | ROTBRAUN | 1 | 09/2008 | 51417974396 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Set of decor finishers | MUSCHALAHORN | 1 | 09/2008 | 51417974421 | NoS | Shop at ECS Tuning | |||
| 06 | Set of decor finishers | PIANOLACK SW | 1 | 09/2008 | 51167974375 | NoS | Shop at ECS Tuning | |||
| 06 | Set of decor finishers | ROTBRAUN | 1 | 09/2008 | 51167974376 | NoS | Shop at ECS Tuning | |||
| 06 | Set of decor finishers | MUSCHELAHORN | 1 | 09/2008 | 51167974377 | NoS | Shop at ECS Tuning | |||
| 07 | Decor panel for centre console | PIANOLACK SW | 1 | 03/2009 | 51167975240 | NoS | Shop at ECS Tuning | |||
| 07 | Decor panel for centre console | ROTBRAUN | 1 | 03/2009 | 51167975247 | NoS | Shop at ECS Tuning | |||
| 07 | Decor panel for centre console | MUSCHELAHORN | 1 | 03/2009 | 51167975250 | NoS | Shop at ECS Tuning | |||
| For vehicles with On-board monitor with TV or Navigation system Business or Navigation system Professional |
S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 09 | Set of decor finishers | PIANOLACK SW | 1 | 09/2008 | 51167974378 | NoS | Shop at ECS Tuning | |||
| 09 | Set of decor finishers | ROTBRAUN | 1 | 09/2008 | 51167974379 | NoS | Shop at ECS Tuning | |||
| 09 | Set of decor finishers | MUSCHELAHORN | 1 | 09/2008 | 51167974380 | NoS | Shop at ECS Tuning | |||
| 10 | Decor panel for centre console | PIANOLACK SW | 1 | 03/2009 | 51167975241 | NoS | Shop at ECS Tuning | |||
| 10 | Decor panel for centre console | ROTBRAUN | 1 | 03/2009 | 51167975246 | NoS | Shop at ECS Tuning | |||
| 10 | Decor panel for centre console | MUSCHELAHORN | 1 | 03/2009 | 51167975251 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
