Individual wood trim covers for BMW 3 Series E92 LCI 330i (2012)

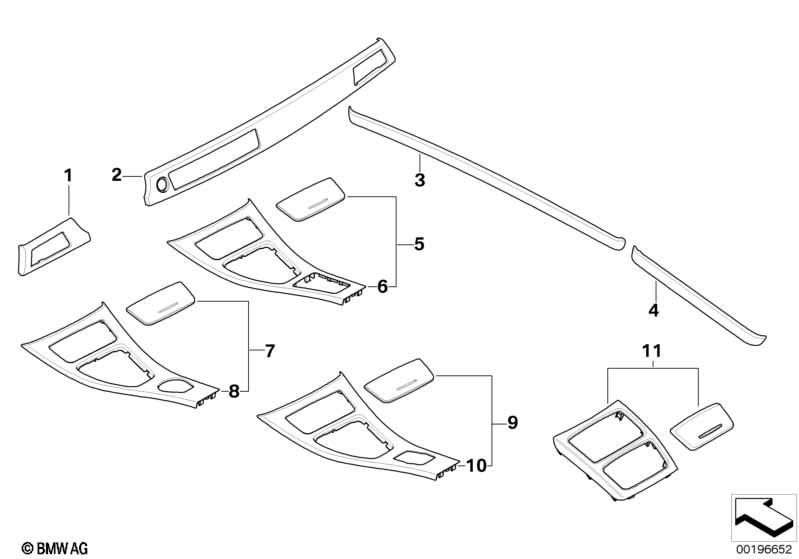

This Individual wood trim covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.

Individual wood trim covers
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to
individual vehicles with SA 940
----------------------------------------
Standard parts are also installed in
individual vehicles. It is necessary to
check beforehand that the required
spare part is not a standard part.
---------------------------
01 Cover, dashboard, right PIANOLACK SW 1 12/2006 51457963940 NoS Shop at ECS Tuning
01 Cover, dashboard, right ROTBRAUN 1 12/2006 51457963964 NoS Shop at ECS Tuning
01 Cover, dashboard, right MUSCHELAHORN 1 12/2006 51457963988 NoS Shop at ECS Tuning
01 Trim cover for I-panel w/o inlay, right PIANOLACK SW 1 12/2006 51457977993 NoS Shop at ECS Tuning
02 Cover, dashboard, left PIANOLACK SW 1 12/2006 51457963939 NoS Shop at ECS Tuning
02 Cover, dashboard, left ROTBRAUN 1 12/2006 51457963963 NoS Shop at ECS Tuning
02 Cover, dashboard, left MUSCHELAHORN 1 12/2006 51457963987 NoS Shop at ECS Tuning
02 Trim cover for I-panel w/o inlay, left PIANOLACK SW 1 12/2006 51457977994 NoS Shop at ECS Tuning
03 Trim cover, door, left PIANOLACK SW 1 12/2006 51417963933 NoS Shop at ECS Tuning
03 Trim cover, door, right PIANOLACK SW 1 12/2006 51417963934 NoS Shop at ECS Tuning
03 Trim cover, door, left ROTBRAUN 1 12/2006 51417963957 NoS Shop at ECS Tuning
03 Trim cover, door, right ROTBRAUN 1 12/2006 51417963958 NoS Shop at ECS Tuning
03 Trim cover, door, left MUSCHELAHORN 1 12/2006 51417963981 NoS Shop at ECS Tuning
03 Trim cover, door, right MUSCHELAHORN 1 12/2006 51417963982 NoS Shop at ECS Tuning
04 Trim cover, side trim, left PIANOLACK SW 1 12/2006 51437963935 NoS Shop at ECS Tuning
04 Trim cover, side trim, right PIANOLACK SW 1 12/2006 51437963936 NoS Shop at ECS Tuning
04 Trim cover, side trim, left ROTBRAUN 1 12/2006 51437963959 NoS Shop at ECS Tuning
04 Trim cover, side trim, right ROTBRAUN 1 12/2006 51437963960 NoS Shop at ECS Tuning
04 Trim cover, side trim, left MUSCHELAHORN 1 12/2006 51437963983 NoS Shop at ECS Tuning
04 Trim cover, side trim, right MUSCHELAHORN 1 12/2006 51437963984 NoS Shop at ECS Tuning
05 Set, decor panels, center console PIANOLACK SW 1 03/2007 51167963927 NoS Shop at ECS Tuning
05 Set, decor panels, center console ROTBRAUN 1 03/2007 51167963951 NoS Shop at ECS Tuning
05 Set, decor panels, center console MUSCHELAHORN 1 03/2007 51167963975 NoS Shop at ECS Tuning
06 Decor panel for centre console PIANOLACK SW 1 03/2009 51167975242 NoS Shop at ECS Tuning
06 Decor panel for centre console ROTBRAUN 1 03/2009 51167975247 NoS Shop at ECS Tuning
06 Decor panel for centre console MUSCHELAHORN 1 03/2009 51167975252 NoS Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system Business
or
Navigation system Professional
S602A=Yes

S606A=Yes

S609A=Yes
09 Set, decor panels, center console PIANOLACK SW 1 09/2008 51167967786 NoS Shop at ECS Tuning
09 Set, decor panels, center console ROTBRAUN 1 09/2008 51167967788 NoS Shop at ECS Tuning
09 Set, decor panels, center console MUSCHELAHORN 1 09/2008 51167967790 NoS Shop at ECS Tuning
10 Decor panel for centre console PIANOLACK SW 1 03/2009 51167975243 NoS Shop at ECS Tuning
10 Decor panel for centre console ROTBRAUN 1 03/2009 51167975248 NoS Shop at ECS Tuning
10 Decor panel for centre console MUSCHELAHORN 1 03/2009 51167975253 NoS Shop at ECS Tuning
11 Cover, rear console, front PIANOLACK SCHW. 1 12/2006 51167963921 Shop at ECS Tuning
11 Cover, rear console, front ROTBRAUN 1 12/2006 51167963945 NoS Shop at ECS Tuning
11 Cover, rear console, front MUSCHELAHORN 1 12/2006 51167963969 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
