Individual cover rear comfort seat for BMW 7 Series F02 740Li

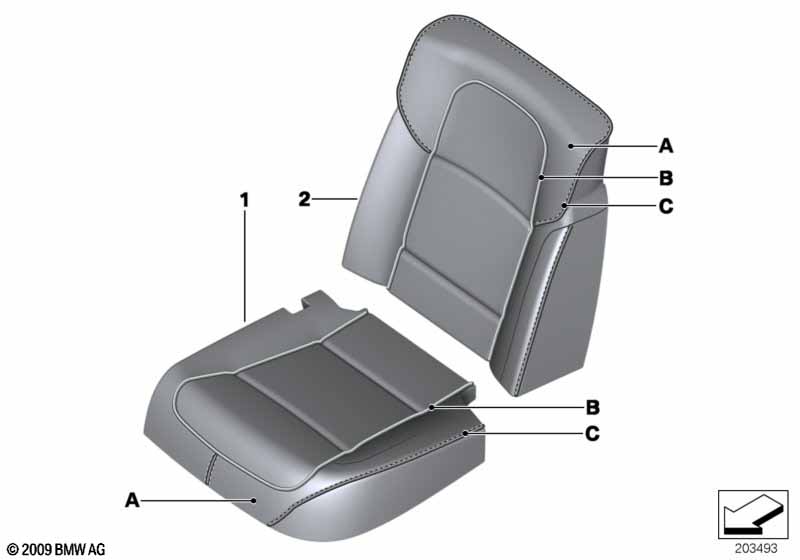

This Individual cover rear comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part Number Leather - (B) Part Number Leather, (piping) - (C) Color specification, threads --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 01 | Cover for comfort seat, leather left | INDIVIDUAL | 1 | 03/2009 | 07/2010 | 52207975881 | NoS | Shop at ECS Tuning | ||
| 01 | Cover for comfort seat, leather right | INDIVIDUAL | 1 | 03/2009 | 07/2010 | 52207975882 | NoS | Shop at ECS Tuning | ||
| 01 | Cover for comfort seat, leather left | INDIVIDUAL | 1 | 07/2010 | 52207980863 | NoS | Shop at ECS Tuning | |||
| 01 | Cover for comfort seat, leather right | INDIVIDUAL | 1 | 07/2010 | 52207980864 | NoS | Shop at ECS Tuning | |||
| 02 | Cover for comfort backrest,leather left | INDIVIDUAL | 1 | 03/2009 | 52207975883 | NoS | Shop at ECS Tuning | |||
| 02 | Cover for comfort backrest,leather right | INDIVIDUAL | 1 | 03/2009 | 52207975884 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
