Ind. headrest, comfort seat, rear for BMW 7 Series F02 LCI 740Li (2015)

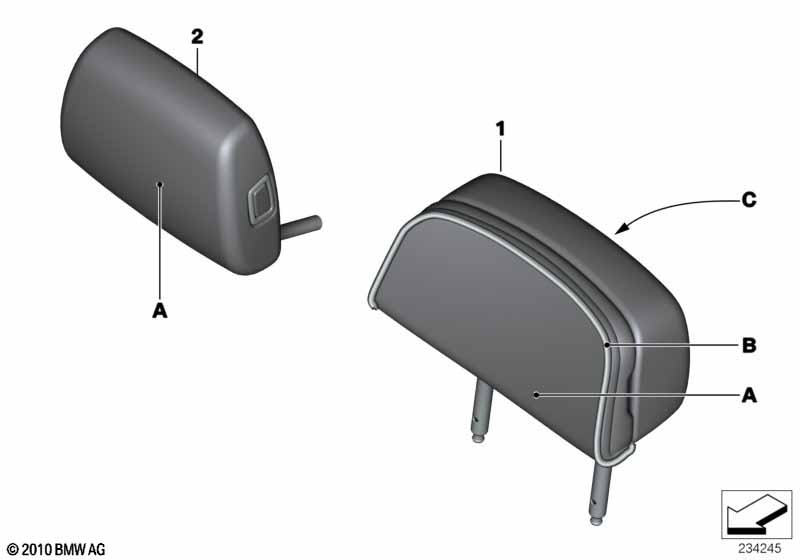

This Ind. headrest, comfort seat, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather (head restraint) - (B) Part number, leather (piping) - (C) Color specification, threads --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 01 | Headrest comfort, leather | INDIVIDUAL | 2 | 03/2009 | 52207975885 | NoS | Shop at ECS Tuning | |||
| 02 | Headrest, center, leather | INDIVIDUAL | 1 | 09/2010 | 52207975998 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Ind. headrest, comfort seat, rear?
- This technical diagram illustrates the Ind. headrest, comfort seat, rear within the Individual equipment group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Headrest comfort, leather (Part #52207975885).
- Which models use the hardware listed in this Ind. headrest, comfort seat, rear?
- The hardware and components featured in the Ind. headrest, comfort seat, rear are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Headrest comfort, leather (52207975885) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ind. headrest, comfort seat, rear assembly?
- Each item in the Ind. headrest, comfort seat, rear corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Headrest comfort, leather by locating its position on the schematic, which then links to the official BMW part number 52207975885 for the Individual equipment section.
