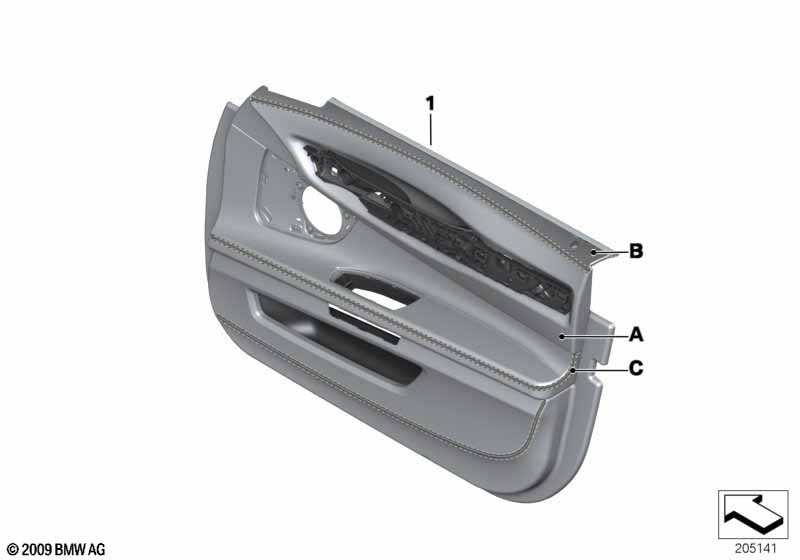

Individual front door trim panel,leather for BMW 7 Series F02 LCI 740Li (2015)
This Individual front door trim panel,leather technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number, leather - (B) black leather - (C) Color ID thread --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| Only for use together with speaker cover | ||||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 03/2009 | 51417967703 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior left front moulding | 1 | 03/2009 | 51419144783 | $24.85 | Shop at ECS Tuning | ||||
| -- | Clamp | 9 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 03/2009 | 51417967704 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior right front moulding | 1 | 03/2009 | 51419144784 | $24.85 | Shop at ECS Tuning | ||||
| -- | Clamp | 9 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Individual front door trim panel,leather?
- This technical diagram illustrates the Individual front door trim panel,leather within the Individual equipment group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Door panel, leather, front left (Part #51417967703).
- Which models use the hardware listed in this Individual front door trim panel,leather?
- The hardware and components featured in the Individual front door trim panel,leather are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Door panel, leather, front left (51417967703) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual front door trim panel,leather assembly?
- Each item in the Individual front door trim panel,leather corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Door panel, leather, front left by locating its position on the schematic, which then links to the official BMW part number 51417967703 for the Individual equipment section.
