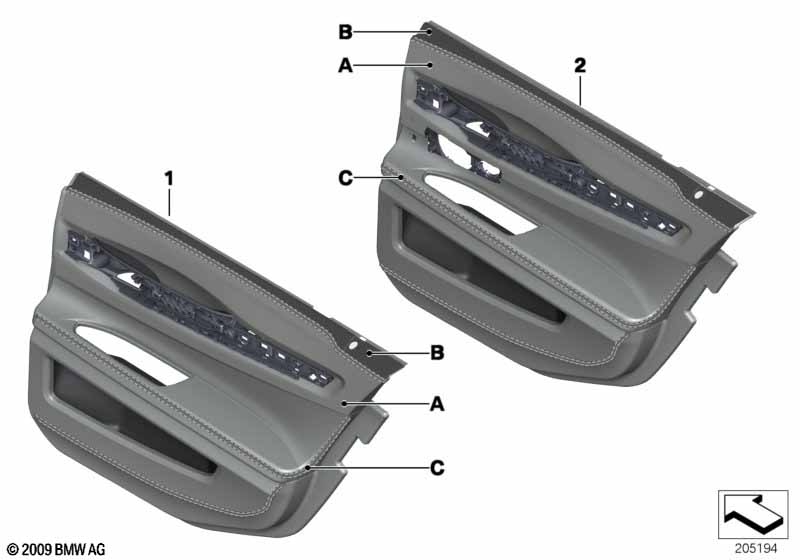

Individual rear door trim panel,leather for BMW 7 Series F02 LCI 740Li (2015)
This Individual rear door trim panel,leather technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number, leather - (B) black leather - (C) Color ID thread --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967721 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51429168621 | $31.06 | Shop at ECS Tuning | ||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51429168651 | $62.13 | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967722 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51429168622 | Shop at ECS Tuning | |||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51429168652 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967729 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967730 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S677A=Yes S688A=Yes S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967725 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51429168621 | $31.06 | Shop at ECS Tuning | ||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51429168651 | $62.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967726 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51429168622 | Shop at ECS Tuning | |||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51429168652 | Shop at ECS Tuning | |||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=Yes S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=Yes S6F2A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=No S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=No S6F2A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=Yes S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=Yes S6F2A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=No S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2009 | 51427967733 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside left | 1 | 03/2009 | 51359141413 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside left | 1 | 03/2009 | 51359141415 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=Yes S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=Yes S6F2A=No |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=No S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=Yes S688A=No S6F2A=No |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=Yes S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=Yes S6F2A=No |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound Only for use together with speaker cover |
S416A=Yes S677A=No S688A=No S6F2A=Yes |
|||||||||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2009 | 51427967734 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Door trim strip, long, inside right | 1 | 03/2009 | 51359141414 | $79.92 | Shop at ECS Tuning | ||||
| -- | Door trim strip, short, inside right | 1 | 03/2009 | 51359141416 | $32.13 | Shop at ECS Tuning | ||||
| -- | Clamp | 8 | 03/2009 | 07147213398 | $1.17 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
