Individual armrest, basic rear for BMW 7 Series F02 750Li (2012)

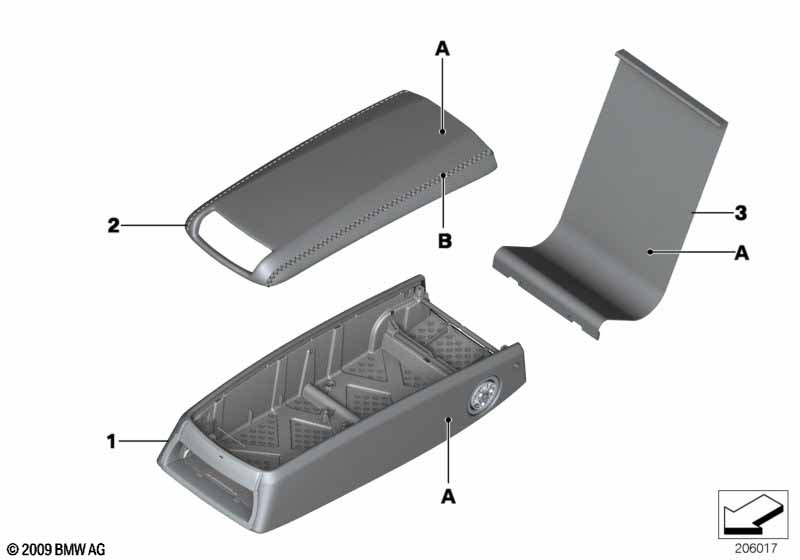

This Individual armrest, basic rear technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- For vehicles with Comfort seat, rear, electr. adjustable and Rear Professional entertainment center and Rear phone with cordless receiver and special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
S460A=No S6FHA=No S6NBA=No Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| 01 | Armrest lower section, rear center | INDIVIDUAL | 1 | 03/2009 | 52207979630 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, armrest, rear center | INDIVIDUAL | 1 | 03/2009 | 52207979633 | NoS | Shop at ECS Tuning | |||
| For vehicles with Coolbox |
S791A=Yes |
|||||||||
| 03 | Luggage cover, leather | SCHWARZ | 1 | 03/2009 | 52207979636 | NoS | Shop at ECS Tuning | |||
| For vehicles with Coolbox |
S791A=No |
|||||||||
| 03 | Luggage cover, leather | INDIVIDUAL | 1 | 03/2009 | 52207979635 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
