Individual parcel shelf for BMW 7 Series F02 LCI 730Li (2015)

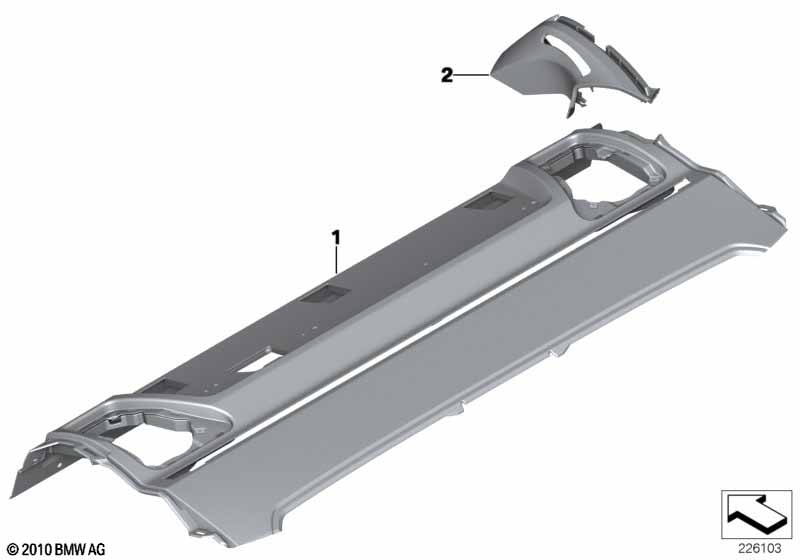

This Individual parcel shelf technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. For vehicles with special equipment BMW Individual or Indi. headliner Alcantara |
S940A=Yes SXD5A=Yes |
||||||||
| 01 | Rear window shelf in Alcantara | PLATIN | 1 | 03/2009 | 51467975900 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf in Alcantara | CHAMPAGNER | 1 | 03/2009 | 51467975920 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf in Alcantara | SEIDENGRAU | 1 | 03/2009 | 51467975930 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf in Alcantara | AMAROBRAUN | 1 | 09/2010 | 51467980914 | NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf in Alcantara | CARAMEL | 1 | 07/2012 | 51467984383 | NoS | Shop at ECS Tuning | |||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 01 | Rear window shelf sun blind in Alcantara | PLATIN | 1 | 03/2009 | 51467975901 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf sun blind in Alcantara | CHAMPAGNER | 1 | 03/2009 | 51467975921 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf sun blind in Alcantara | SEIDENGRAU | 1 | 03/2009 | 51467975931 | NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf sun blind in Alcantara | AMAROBRAUN | 1 | 09/2010 | 51467980917 | NoS | Shop at ECS Tuning | |||
| 01 | Rear window shelf sun blind in Alcantara | CARAMEL | 1 | 07/2012 | 51467984384 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, left | PLATIN | 1 | 03/2009 | 51467975749 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, right | PLATIN | 1 | 03/2009 | 51467975750 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, left | AMAROBRAUN | 1 | 03/2009 | 51467975751 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, right | AMAROBRAUN | 1 | 03/2009 | 51467975752 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, left | CHAMPAGNER | 1 | 03/2009 | 51467975753 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, right | CHAMPAGNER | 1 | 03/2009 | 51467975754 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, left | SEIDENGRAU | 1 | 03/2009 | 51467975755 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, right | SEIDENGRAU | 1 | 03/2009 | 51467975756 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, left | CARAMEL | 1 | 07/2012 | 51467979793 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, belt slot, Alcantara, right | CARAMEL | 1 | 07/2012 | 51467979794 | NoS | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
