Indi. I-panel, mounted parts, lower for BMW 7 Series F02 750Li (2012)

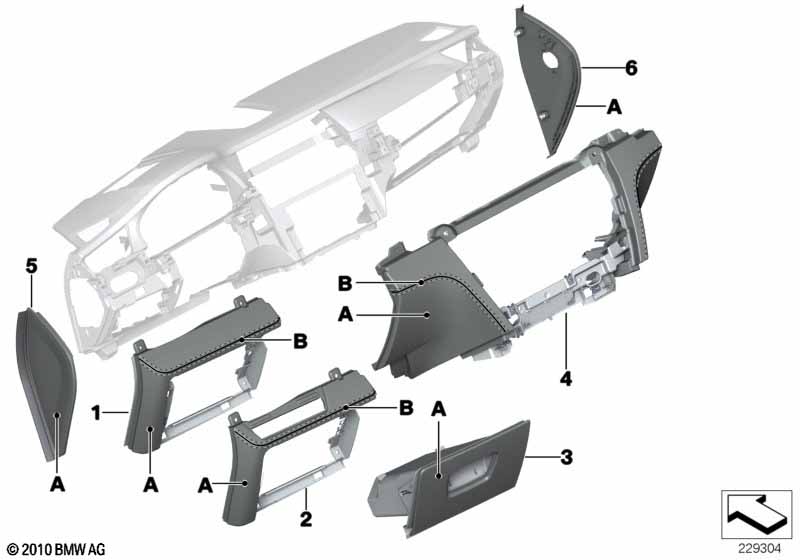

This Indi. I-panel, mounted parts, lower technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- For vehicles with Indi. full leather/"platin/black" or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" or special trim (without colour statement) |
ZBC8=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes Z1XX=Yes |
||||||||
| 01 | Trim, fold-out bin, leather, driver side | INDIVIDUAL | 1 | 09/2009 | 51457979077 | NoS | Shop at ECS Tuning | |||
| For vehicles with Lane departure warning or Lane-change warning or Active cruise control+Stop&Go function or Head-up display or Night Vision with human recognition |
S5ADA=Yes S5AGA=Yes S5DFA=Yes S610A=Yes S6UKA=Yes |
|||||||||
| 02 | Trim, fold-out bin, leather, driver side | INDIVIDUAL | 1 | 09/2009 | 07/2012 | 51457978341 | NoS | Shop at ECS Tuning | ||
| 03 | Fold-out bin, driver side, leather | INDIVIDUAL | 1 | 03/2009 | 51457975794 | NoS | Shop at ECS Tuning | |||
| 04 | Trim for I-panel, leather, center, lower | INDIVIDUAL | 1 | 09/2009 | 51457979073 | NoS | Shop at ECS Tuning | |||
| 05 | Side cover, left | INDIVIDUAL | 1 | 03/2009 | 51457975787 | NoS | Shop at ECS Tuning | |||
| 06 | Side cover for "Airbag off" right | INDIVIDUAL | 1 | 03/2009 | 51457975788 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
