Individual rear window shelf, Alcantara for BMW 5 Series F10 LCI 520i (2016)

This Individual rear window shelf, Alcantara technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.

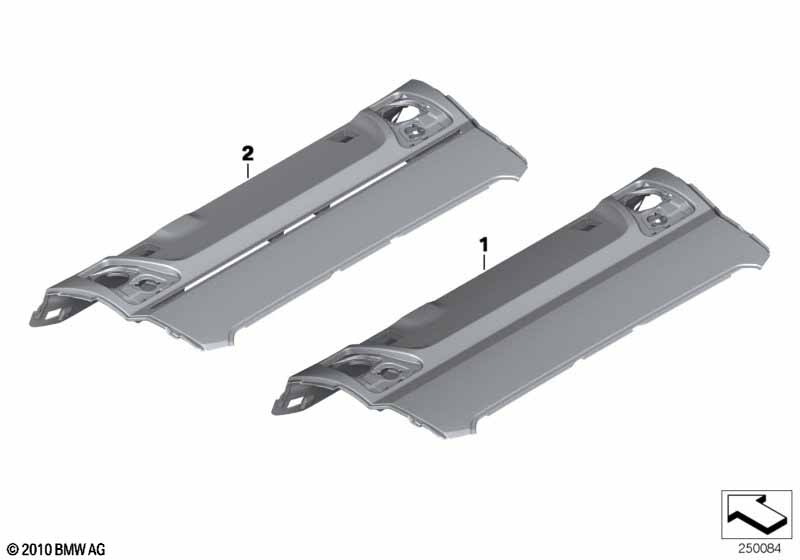

Individual rear window shelf, Alcantara
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------------
Standard parts are also installed in
individual vehicles. It is necessary to
check beforehand that the required
spare part is not a standard part.
---------------------------
For vehicles with
special equipment BMW Individual
or
Indi. headliner Alcantara






S940A=Yes

SXD5A=Yes
01 Rear window shelf in Alcantara CHAMPAGNER 1 03/2011 51467976061 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara PLATIN 1 03/2011 51467976062 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara SEIDENGRAU 1 03/2011 51467976063 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara AMAROBRAUN 1 07/2013 51467982785 NoS Shop at ECS Tuning
For vehicles with
National version Australia
L810A=Yes
01 Rear window shelf in Alcantara CHAMPAGNER 1 03/2011 51467976067 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara PLATIN 1 03/2011 51467976068 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara SEIDENGRAU 1 03/2011 51467976069 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara AMAROBRAUN 1 07/2013 51467982787 NoS Shop at ECS Tuning
For vehicles with
Through-loading system
S465A=Yes
01 Rear window shelf in Alcantara CHAMPAGNER 1 03/2011 51447976073 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara PLATIN 1 03/2011 51447976074 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara SEIDENGRAU 1 03/2011 51447976075 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara AMAROBRAUN 1 07/2013 51447982789 NoS Shop at ECS Tuning
For vehicles with
National version Australia
and
Through-loading system
L810A=Yes

S465A=Yes
01 Rear window shelf in Alcantara CHAMPAGNER 1 03/2011 51447976079 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara PLATIN 1 03/2011 51447976080 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara SEIDENGRAU 1 03/2011 51447976081 +core, NoS Shop at ECS Tuning
01 Rear window shelf in Alcantara AMAROBRAUN 1 07/2013 51447982791 NoS Shop at ECS Tuning
For vehicles with
Sun-blind, rear
S415A=Yes
02 Rear window shelf sun blind in Alcantara CHAMPAGNER 1 03/2011 51467976064 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara PLATIN 1 03/2011 51467976065 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara SEIDENGRAU 1 03/2011 51467976066 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara AMAROBRAUN 1 07/2013 51467982786 NoS Shop at ECS Tuning
For vehicles with
National version Australia
and
Sun-blind, rear
L810A=Yes

S415A=Yes
02 Rear window shelf sun blind in Alcantara CHAMPAGNER 1 03/2011 51467976070 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara PLATIN 1 03/2011 51467976071 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara SEIDENGRAU 1 03/2011 51467976072 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara AMAROBRAUN 1 07/2013 51467982788 NoS Shop at ECS Tuning
For vehicles with
Sun-blind, rear
and
Through-loading system
S415A=Yes

S465A=Yes
02 Rear window shelf sun blind in Alcantara CHAMPAGNER 1 03/2011 51447976076 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara PLATIN 1 03/2011 51447976077 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara SEIDENGRAU 1 03/2011 51447976078 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara AMAROBRAUN 1 07/2013 51447982790 NoS Shop at ECS Tuning
For vehicles with
National version Australia
and
Sun-blind, rear
and
Through-loading system
L810A=Yes

S415A=Yes

S465A=Yes
02 Rear window shelf sun blind in Alcantara CHAMPAGNER 1 03/2011 51447976082 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara PLATIN 1 03/2011 51447976083 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara SEIDENGRAU 1 03/2011 51447976084 +core, NoS Shop at ECS Tuning
02 Rear window shelf sun blind in Alcantara AMAROBRAUN 1 07/2013 51447982792 NoS Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part centrally not stocked)
