Indiv.cover, basic seat, front for BMW 5 Series F10 528i (2011)

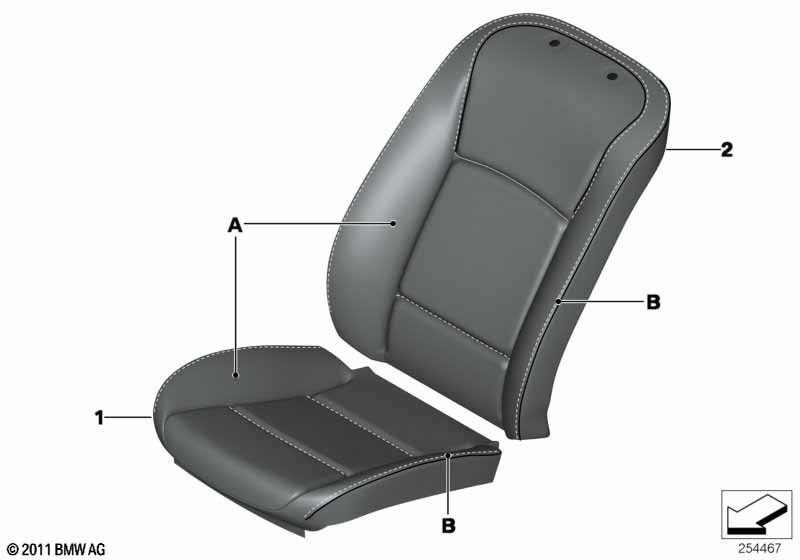

This Indiv.cover, basic seat, front technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- Version with seat heating (also suitable for vehicles without seat heating) --------------------------- For vehicles with Comfort seat with memory and Sports seat and special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather expanded/"champagner" or Indi. leather expanded/'seiden-grau' or Indi. leather expanded/'graphite' or Indi. leather expanded /"cohiba" |
S456A=No S481A=No Z1XX=Yes ZAC8=Yes ZAP6=Yes ZAP7=Yes ZAP8=Yes ZAWT=Yes |
||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 2 | 03/2011 | 52108034519 | NoS | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 2 | 03/2011 | 52108034523 | NoS | Shop at ECS Tuning | |||
| 02 | Backrest cover, basic seat, leather | INDIVIDUAL | 2 | 03/2011 | 52108034520 | Shop at ECS Tuning | ||||
| For vehicles with Rear-compartment entertainment or Rear Professional entertainment center |
S6FGA=Yes S6FHA=Yes |
|||||||||
| 02 | Backrest cover, basic seat, leather | INDIVIDUAL | 2 | 03/2011 | 52108034520 | NoS | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Template | 1 | 03/2011 | 01290394222 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
