Individual headrest, front for BMW 5 Series F11 535d (2011)

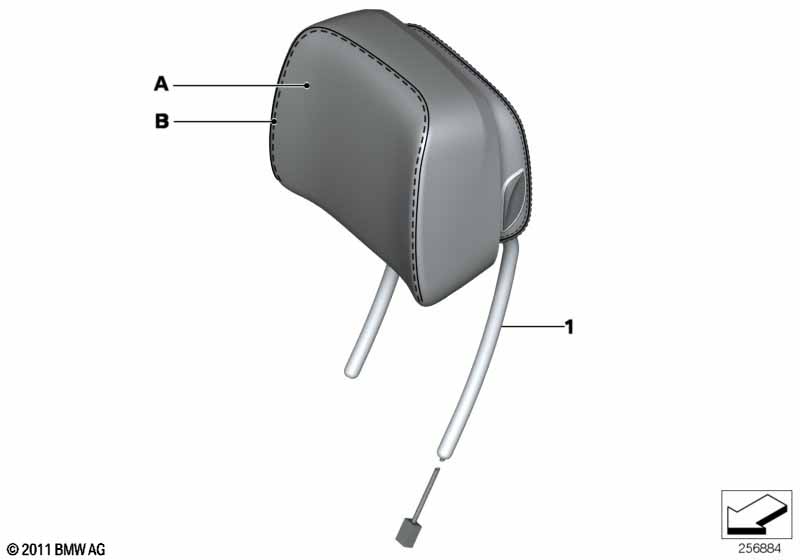

This Individual headrest, front technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- For vehicles with Comfort seat with memory and M multifunction seat and special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather expanded/"champagner" or Indi. leather expanded/'seiden-grau' or Indi. leather expanded/'graphite' or Indi. leather expanded /"cohiba" |
S456A=No S4MAA=No Z1XX=Yes ZAC8=Yes ZAP6=Yes ZAP7=Yes ZAP8=Yes ZAWT=Yes |
||||||||
| 01 | Headrest, leather, manual | INDIVIDUAL | 2 | 03/2011 | 52108034965 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Headrest, leather, manual | INDIVIDUAL | 2 | 03/2011 | 52108034965 | NoS | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Head restraint, leather, electric | INDIVIDUAL | 2 | 03/2011 | 52108034966 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Head restraint, leather, electric | INDIVIDUAL | 2 | 03/2011 | 52108034966 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
