Individ. rear panel,leather comfort seat for BMW 5 Series F10 525d

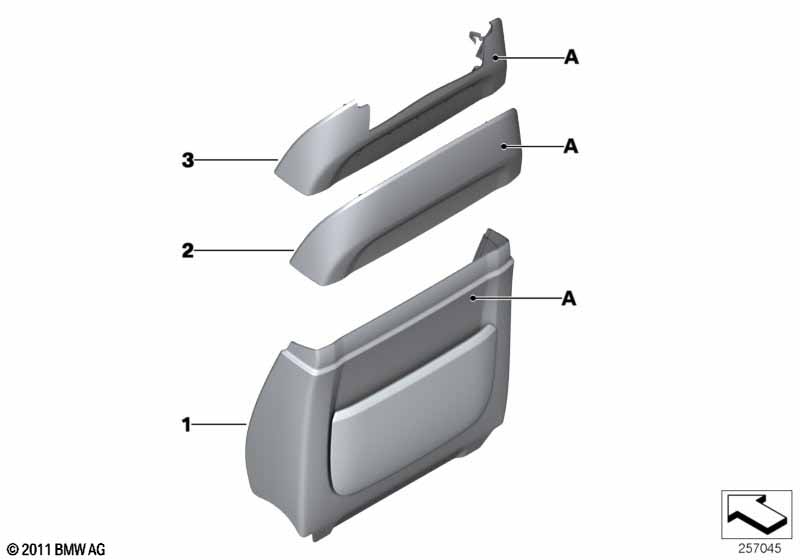

This Individ. rear panel,leather comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- For vehicles with Comfort seat with memory or Sports seat or M multifunction seat and special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather expanded/"champagner" or Indi. leather expanded/'seiden-grau' or Indi. leather expanded/'graphite' or Indi. leather expanded /"cohiba" |
S456A=Yes S481A=No S4MAA=Yes Z1XX=Yes ZAC8=Yes ZAP6=Yes ZAP7=Yes ZAP8=Yes ZAWT=Yes |
||||||||
| 01 | Rear section, Comfort seat, lower | INDIVIDUAL | 2 | 03/2011 | 07/2013 | 52107975875 | NoS | Shop at ECS Tuning | ||
| 02 | Rear section, Comfort seat, upper | INDIVIDUAL | 2 | 03/2011 | 07/2013 | 52107975876 | NoS | Shop at ECS Tuning | ||
| For vehicles with Rear-compartment entertainment or Rear Professional entertainment center |
S6FGA=Yes S6FHA=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | INDIVIDUAL | 2 | 03/2011 | 07/2013 | 52107979425 | NoS | Shop at ECS Tuning | ||
Notes
- NoS = No Stock (Part centrally not stocked)
