Individ.through-loading syst.,rear seat for BMW 5 Series F10 528i (2011)

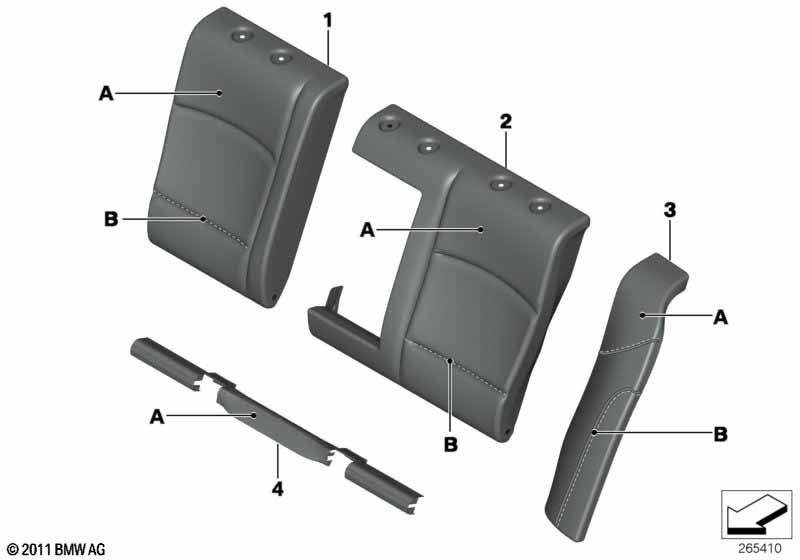

This Individ.through-loading syst.,rear seat technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- Version with seat heating (also suitable for vehicles without seat heating) --------------------------- For vehicles with Climate-controlled seats, front and Through-loading system and special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather, extended/kaschmir-beige or Indi. leather, extended/kaschmir-beige or Indi. leather expanded / muskat or Indi. leather, extended/amaro-braun or Indi. leather expanded/"champagner" or Indi. leather expanded/'seiden-grau' or Indi. leather expanded/'graphite' or Indi. leather expanded /"cohiba" |
S453A=No S465A=Yes Z1XX=Yes ZAC8=Yes ZAKO=Yes ZAKS=Yes ZAML=Yes ZAP5=Yes ZAP6=Yes ZAP7=Yes ZAP8=Yes ZAWT=Yes |
||||||||
| 01 | Cover backrest leather right | INDIVIDUAL | 1 | 03/2011 | 52208034548 | NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest leather left | INDIVIDUAL | 1 | 03/2011 | 52208034547 | NoS | Shop at ECS Tuning | |||
| 03 | Side finisher, leather, left | INDIVIDUAL | 1 | 03/2011 | 52208034969 | NoS | Shop at ECS Tuning | |||
| 03 | Side finisher, leather, right | INDIVIDUAL | 1 | 03/2011 | 52208034970 | NoS | Shop at ECS Tuning | |||
| 04 | Leather cover for strip | INDIVIDUAL | 1 | 03/2011 | 52208034553 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
