I.through-loading S.KlimaLeather,rr seat for BMW 5 Series F10 LCI 518d (2016)

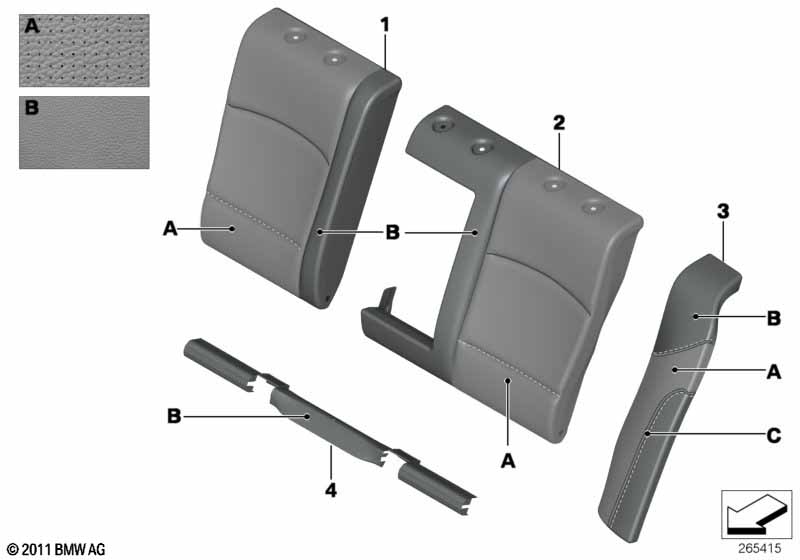

This I.through-loading S.KlimaLeather,rr seat technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather (perforated) - (B) Part number leather (smooth) - (C) Colour of thread --------------------------- Version with seat heating (also suitable for vehicles without seat heating) --------------------------- For vehicles with Climate-controlled seats, front and Through-loading system and special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather, extended/kaschmir-beige or Indi. leather, extended/kaschmir-beige or Indi. leather expanded / muskat or Indi. leather, extended/amaro-braun or Indi. leather expanded/"champagner" or Indi. leather expanded/'seiden-grau' or Indi. leather expanded/'graphite' or Indi. leather expanded /"cohiba" |
S453A=Yes S465A=Yes Z1XX=Yes ZAC8=Yes ZAKO=Yes ZAKS=Yes ZAML=Yes ZAP5=Yes ZAP6=Yes ZAP7=Yes ZAP8=Yes ZAWT=Yes |
||||||||
| 01 | Cover, backrest, perforated leather, rgt | INDIVIDUAL | 1 | 03/2011 | 52208034552 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, backrest, perforated leather, lft | INDIVIDUAL | 1 | 03/2011 | 52208034551 | NoS | Shop at ECS Tuning | |||
| 03 | Side section, perforated leather, left | INDIVIDUAL | 1 | 03/2011 | 52208034971 | NoS | Shop at ECS Tuning | |||
| 03 | Side section, perforated leather, right | INDIVIDUAL | 1 | 03/2011 | 52208034972 | NoS | Shop at ECS Tuning | |||
| 04 | Leather cover for strip | INDIVIDUAL | 1 | 03/2011 | 52208034553 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
