Individual wood 'Eschemaser weiss' for BMW 6 Series F12 640dX (2015)

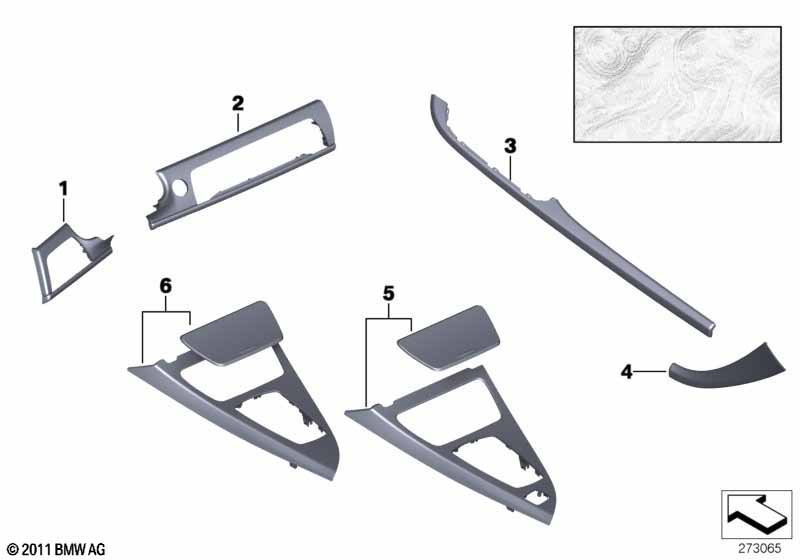

This Individual wood 'Eschemaser weiss' technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. --------------------------- For vehicles with special equipment BMW Individual or Individual fine ash woodgrain in white |
S940A=Yes SXEXA=Yes |
||||||||
| 01 | Wood panel, instrument panel, left | ESCHEMASER WEIß | 1 | 09/2011 | 51458032863 | NoS | Shop at ECS Tuning | |||
| 02 | Wood panel, instrument panel, center | ESCHEMASER WEIß | 1 | 09/2011 | 51458032869 | NoS | Shop at ECS Tuning | |||
| For vehicles with Auto start/stop function |
S1CCA=Yes |
|||||||||
| 02 | Wood panel, instrument panel, center | ESCHEMASER WEIß | 1 | 09/2011 | 51458032875 | NoS | Shop at ECS Tuning | |||
| 03 | Wooden strip, door front left | ESCHEMASER WEIß | 1 | 09/2011 | 51418032845 | NoS | Shop at ECS Tuning | |||
| 03 | Wooden strip, door front right | ESCHEMASER WEIß | 1 | 09/2011 | 51418032846 | NoS | Shop at ECS Tuning | |||
| 04 | Wooden molding, side trim, left | ESCHEMASER WEIß | 1 | 09/2011 | 51438032857 | NoS | Shop at ECS Tuning | |||
| 04 | Wooden molding, side trim, right | ESCHEMASER WEIß | 1 | 09/2011 | 51438032858 | NoS | Shop at ECS Tuning | |||
| only suitable for use with automatic transmission |
||||||||||
| 05 | Wood cover, center consola | ESCHEMASER WEIß | 1 | 09/2011 | 51168032831 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
