Indiv.cover for M multifunction seat for BMW 6 Series F06 Gran Coupé LCI M6 (2018)

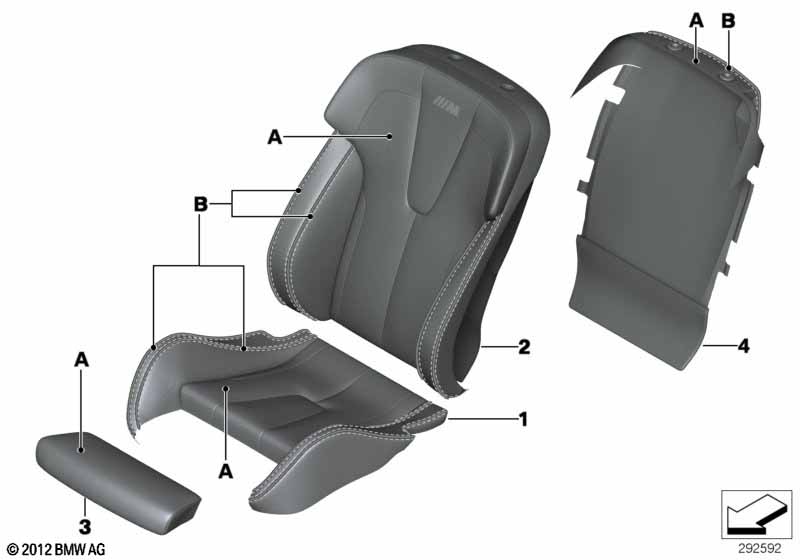

This Indiv.cover for M multifunction seat technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé LCI M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- For vehicles with M multifunction seat and special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/opal-weiss/brown or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"cohiba" |
S4MAA=Yes Z1XX=Yes ZBC8=Yes ZBOB=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBWT=Yes |
||||||||
| For vehicles with Climate-controlled seats, front |
S453A=No |
|||||||||
| 01 | Seat cover leather left | INDIVIDUAL | 1 | 03/2012 | 52107982537 | NoS | Shop at ECS Tuning | |||
| 01 | Seat cover leather right | INDIVIDUAL | 1 | 03/2012 | 52107982538 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, backrest, M multifunc seat, left | INDIVIDUAL | 1 | 03/2012 | 52107982545 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, backrest, M multifunc seat, right | INDIVIDUAL | 1 | 03/2012 | 52107982546 | NoS | Shop at ECS Tuning | |||
| 03 | Cover thigh support | INDIVIDUAL | 1 | 03/2012 | 52107982541 | NoS | Shop at ECS Tuning | |||
| 04 | Cover, Comf. backrest, rear leather left | INDIVIDUAL | 1 | 03/2012 | 52108025075 | NoS | Shop at ECS Tuning | |||
| 04 | Cover, Comf. backrest, rear leather rt | INDIVIDUAL | 1 | 03/2012 | 52108025076 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
