Indi. wood 'Satin walnut honigbraun' for BMW 7 Series F02 LCI 740LdX (2015)

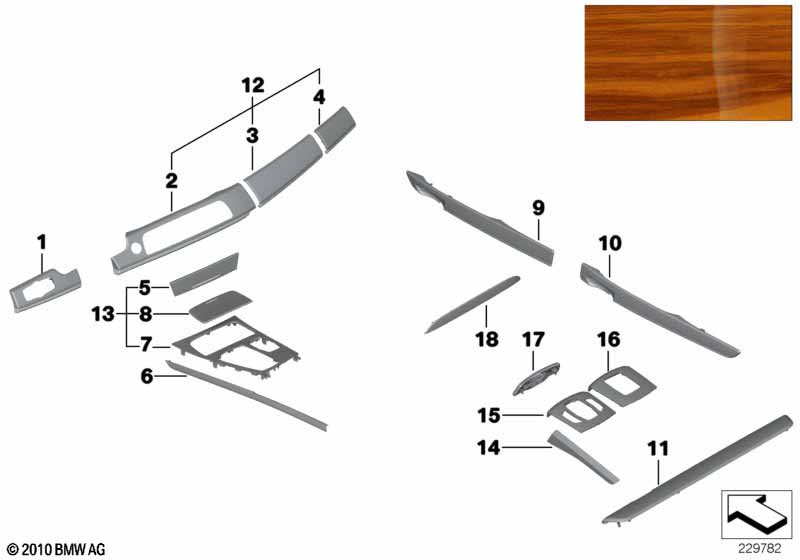

This Indi. wood 'Satin walnut honigbraun' technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.

Indi. wood 'Satin walnut honigbraun'
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------------
Standard parts are also installed in
individual vehicles. It is necessary to
check beforehand that the required
spare part is not a standard part.
---------------------------
For vehicles with
Indi. fine wood satin walnut honigbraun
or
special equipment BMW Individual






SXE6A=Yes

S940A=Yes
01 Wood panel, instrument panel, left NUSSB._HONIGBR. 1 07/2012 51457967645 NoS Shop at ECS Tuning
Opening for automatic engine start-stop
02 Wood panel, instrument panel, center NUSSB._HONIGBR. 1 07/2012 51457983549 NoS Shop at ECS Tuning
03 Right folding partition cover NUSSB._HONIGBR. 1 07/2012 51457967648 NoS Shop at ECS Tuning
04 Wood panel, instrument panel, right NUSSB._HONIGBR. 1 07/2012 51457967647 NoS Shop at ECS Tuning
05 Covering ashtray NUSSB.-HONIGBR. 1 07/2012 51167967649 NoS Shop at ECS Tuning
06 Trim cover, center console, left NUSSB.-HONIGBR. 1 07/2012 51167967635 NoS Shop at ECS Tuning
06 Trim cover, center console, right NUSSB.-HONIGBR. 1 07/2012 51167967636 NoS Shop at ECS Tuning
07 Cover center console NUSSB.-HONIGBR. 1 07/2012 51167984324 NoS Shop at ECS Tuning
08 Cover, cup holder NUSSB.-HONIGBR. 1 07/2012 51167967779 NoS Shop at ECS Tuning
09 Wooden strip, door front left NUSSB.-HONIGBR. 1 07/2012 51417967639 NoS Shop at ECS Tuning
09 Wooden strip, door front right NUSSB.-HONIGBR. 1 07/2012 51417967640 NoS Shop at ECS Tuning
10 Wooden strip, door rear left NUSSB.-HONIGBR. 1 07/2012 51427967643 NoS Shop at ECS Tuning
10 Wooden strip, door rear right NUSSB.-HONIGBR. 1 07/2012 51427967644 NoS Shop at ECS Tuning
11 Wood strip, rear window shelf NUSSB._HONIGBR. 1 07/2012 51467967654 NoS Shop at ECS Tuning
Opening for automatic engine start-stop
12 Set of wood panels, instrument panel NUSSB._HONIGBR. 1 07/2012 51457983547 NoS Shop at ECS Tuning
13 Set of wood covers NUSSB.-HONIGBR. 1 07/2012 51167984321 NoS Shop at ECS Tuning
For vehicles with
Comfort seat, rear, electr. adjustable
S460A=Yes
14 Cover, left, armrest rear center NUSSB.-HONIGBR. 1 07/2012 52207967659 NoS Shop at ECS Tuning
14 Cover, right, armrest rear center NUSSB.-HONIGBR. 1 07/2012 52207967660 NoS Shop at ECS Tuning
For vehicles with
Rear entertainment Profess. with I-Drive
S6FRA=Yes
15 Cover on top of armrest, rear center NUSSB._HONIGBR. 1 07/2012 52207967657 NoS Shop at ECS Tuning
For vehicles with
Comfort seat, rear, electr. adjustable
and
Rear entertainment Profess. with I-Drive
and
Rear phone with cordless receiver
without cut-out
S460A=Yes

S6FRA=No

S6NBA=Yes
16 Cover on top of armrest, rear center NUSSB._HONIGBR. 1 07/2012 52207981277 Shop at ECS Tuning
For vehicles with
Comfort seat, rear, electr. adjustable
and
Rear entertainment Profess. with I-Drive
and
Rear phone with cordless receiver
without cut-out
S460A=Yes

S6FRA=No

S6NBA=No
16 Cover on top of armrest, rear center NUSSB._HONIGBR. 1 07/2012 52207981277 Shop at ECS Tuning
For vehicles with
Comfort seat, rear, electr. adjustable
and
Rear entertainment Profess. with I-Drive
and
Rear phone with cordless receiver
without cut-out
S460A=No

S6FRA=No

S6NBA=Yes
16 Cover on top of armrest, rear center NUSSB._HONIGBR. 1 07/2012 52207981277 NoS Shop at ECS Tuning
17 Cover, cup holder NUSSB.-HONIGBR. 1 07/2012 52207967661 NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Ambient interior lighting
and
Trays in rear
S456A=Yes

S4URA=Yes

S4UVA=No
18 LED light insert, Comfort seat NUSSB._HONIGBR. 2 10/2013 52107967662 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
