Individual wood 'Eschemaser weiss' for BMW 7 Series F01 LCI 740i (2015)

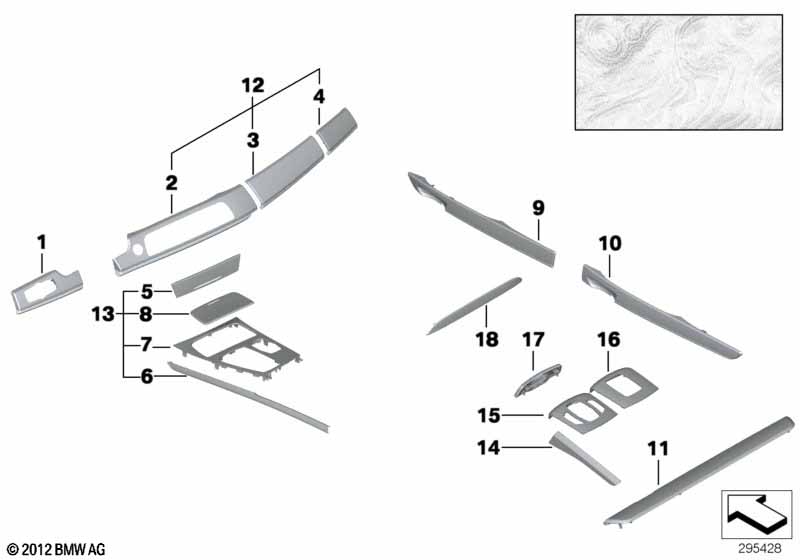

This Individual wood 'Eschemaser weiss' technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- For vehicles with special equipment BMW Individual or Individual fine ash woodgrain in white |
S940A=Yes SXEXA=Yes |
||||||||
| 01 | Wood panel, instrument panel, left | ESCHEMASER WEIß | 1 | 07/2012 | 51457983533 | NoS | Shop at ECS Tuning | |||
| Opening for automatic engine start-stop | ||||||||||
| 02 | Wood panel, instrument panel, center | ESCHEMASER WEIß | 1 | 07/2012 | 51457983587 | NoS | Shop at ECS Tuning | |||
| 03 | Right folding partition cover | ESCHEMASER WEIß | 1 | 07/2012 | 51457983541 | NoS | Shop at ECS Tuning | |||
| 04 | Wood panel, instrument panel, right | ESCHEMASER WEIß | 1 | 07/2012 | 51457983539 | NoS | Shop at ECS Tuning | |||
| 05 | Covering ashtray | ESCHEMASER WEIß | 1 | 07/2012 | 51167983524 | NoS | Shop at ECS Tuning | |||
| 06 | Trim cover, center console, left | ESCHEMASER WEIß | 1 | 07/2012 | 51167983515 | NoS | Shop at ECS Tuning | |||
| 06 | Trim cover, center console, right | ESCHEMASER WEIß | 1 | 07/2012 | 51167983516 | NoS | Shop at ECS Tuning | |||
| 07 | Cover center console | ESCHEMASER WEIß | 1 | 07/2012 | 51167983521 | NoS | Shop at ECS Tuning | |||
| 08 | Cover, cup holder | ESCHEMASER WEIß | 1 | 07/2012 | 51167983523 | NoS | Shop at ECS Tuning | |||
| 09 | Wooden strip, door front left | ESCHEMASER WEIß | 1 | 07/2012 | 51417983525 | NoS | Shop at ECS Tuning | |||
| 09 | Wooden strip, door front right | ESCHEMASER WEIß | 1 | 07/2012 | 51417983526 | NoS | Shop at ECS Tuning | |||
| 10 | Wooden strip, door rear left | ESCHEMASER WEIß | 1 | 07/2012 | 51427983527 | NoS | Shop at ECS Tuning | |||
| 10 | Wooden strip, door rear right | ESCHEMASER WEIß | 1 | 07/2012 | 51427983528 | NoS | Shop at ECS Tuning | |||
| 11 | Wood strip, rear window shelf | ESCHEMASER WEIß | 1 | 07/2012 | 51467983593 | NoS | Shop at ECS Tuning | |||
| Opening for automatic engine start-stop | ||||||||||
| 12 | Set of wood panels, instrument panel | ESCHEMASER WEIß | 1 | 07/2012 | 51457983585 | NoS | Shop at ECS Tuning | |||
| 13 | Set of wood covers | ESCHEMASER WEIß | 1 | 07/2012 | 51167983519 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 14 | Cover, left, armrest rear center | ESCHEMASER WEIß | 1 | 07/2012 | 52207983596 | NoS | Shop at ECS Tuning | |||
| 14 | Cover, right, armrest rear center | ESCHEMASER WEIß | 1 | 07/2012 | 52207983597 | NoS | Shop at ECS Tuning | |||
| For vehicles with Rear entertainment Profess. with I-Drive |
S6FRA=Yes |
|||||||||
| 15 | Trim cover, armrest, upper | ESCHEMASER WEIß | 1 | 07/2012 | 52207983594 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr. adjustable and Rear entertainment Profess. with I-Drive and Rear phone with cordless receiver without cut-out |
S460A=Yes S6FRA=No S6NBA=Yes |
|||||||||
| 16 | Trim cover, armrest, upper | ESCHEMASER WEIß | 1 | 07/2012 | 52207983595 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat, rear, electr. adjustable and Rear entertainment Profess. with I-Drive and Rear phone with cordless receiver without cut-out |
S460A=Yes S6FRA=No S6NBA=No |
|||||||||
| 16 | Trim cover, armrest, upper | ESCHEMASER WEIß | 1 | 07/2012 | 52207983595 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat, rear, electr. adjustable and Rear entertainment Profess. with I-Drive and Rear phone with cordless receiver without cut-out |
S460A=No S6FRA=No S6NBA=Yes |
|||||||||
| 16 | Trim cover, armrest, upper | ESCHEMASER WEIß | 1 | 07/2012 | 52207983595 | NoS | Shop at ECS Tuning | |||
| 17 | Cover, cup holder | ESCHEMASER WEIß | 1 | 07/2012 | 52207983599 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory and Ambient interior lighting and Trays in rear |
S456A=Yes S4URA=Yes S4UVA=No |
|||||||||
| 18 | LED light insert, Comfort seat | ESCHEMASER WEIß | 2 | 10/2013 | 52107983598 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
