Individual cover,Klima-Leather comf.seat for BMW 7 Series F02 LCI 740Li (2015)

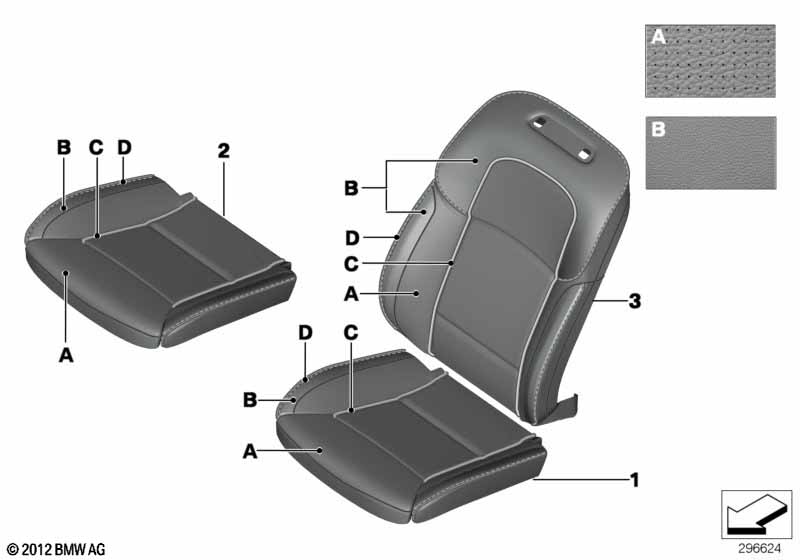

This Individual cover,Klima-Leather comf.seat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather (perforated) - (B) Part number leather (smooth) - (C) Colour of thread - (D) Part number leather (piping) --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory Driver's side |
S453A=Yes S456A=Yes |
|||||||||
| 01 | Cover, Comfort, seat, perf. leather | INDI.KLIMALEDER | 1 | 07/2012 | 52107983221 | NoS | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory Passenger's side |
S453A=Yes S456A=Yes |
|||||||||
| 02 | Cover, Comfort, seat, perf. leather | INDI.KLIMALEDER | 1 | 07/2012 | 52107984397 | NoS | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory |
S453A=Yes S456A=Yes |
|||||||||
| 03 | Cover, Comfort bckrst, perf. lthr, left | INDI.KLIMALEDER | 1 | 07/2012 | 52107983215 | NoS | Shop at ECS Tuning | |||
| 03 | Cover, Comfort bckrst, perf. lthr, right | INDI.KLIMALEDER | 1 | 07/2012 | 52107983216 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
