Individ. rear panel,leather comfort seat for BMW 7 Series F02 LCI 740Li (2015)

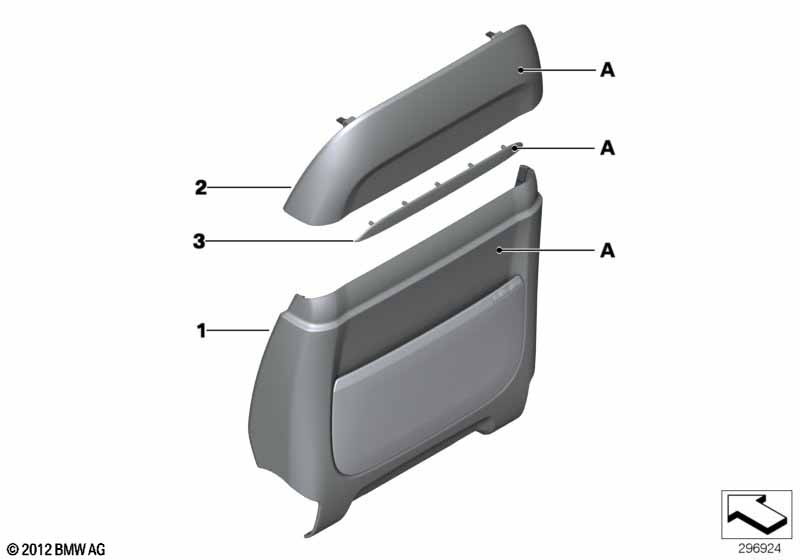

This Individ. rear panel,leather comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/"platin/black" or Indi. full leather/caramel or Indi. full leather/opal-weiss/black or Indi. full leather/"amaro-braun" or Indi. full leather/"champagner" or Indi. full leather/"seiden-grau" or Indi. full leather/"graphit" or Indi. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| For vehicles with Comfort seat with memory and Trays in rear |
S456A=Yes S4UVA=No |
|||||||||
| 01 | Rear section, Comfort seat, lower | INDIVIDUAL | 2 | 07/2012 | 52107984306 | NoS | Shop at ECS Tuning | |||
| 02 | Rear section, Comfort seat, upper | INDIVIDUAL | 2 | 07/2012 | 52107984307 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory and Ambient interior lighting and Trays in rear |
S456A=Yes S4URA=Yes S4UVA=No |
|||||||||
| 02 | Rear section, Comfort seat, upper | INDIVIDUAL | 2 | 07/2012 | 52107984309 | NoS | Shop at ECS Tuning | |||
| For vehicles with Ambient interior lighting and Comfort seat with memory Leather-covered |
S4URA=Yes S456A=Yes |
|||||||||
| 03 | Strip, LED light | INDIVIDUAL | 2 | 52107978828 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
