Individ.through-loading syst.,rear seat for BMW 3 Series F31 320iX (2015)

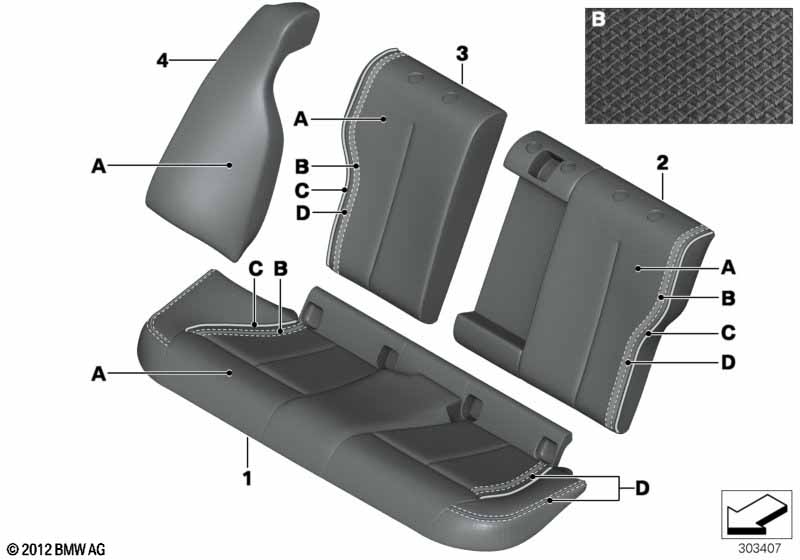

This Individ.through-loading syst.,rear seat technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number for leather - (B) Part number for braided leather - (C) Color specification for piping - (D) Color specification for thread --------------------------- Version: only in leather Merino |
|||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 07/2012 | 52207985183 | NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear left | INDIVIDUAL | 1 | 07/2012 | 52207985197 | NoS | Shop at ECS Tuning | |||
| 03 | Cover backrest, leather, rear right | INDIVIDUAL | 1 | 07/2012 | 52207985194 | NoS | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | INDIVIDUAL | 1 | 07/2012 | 52207985192 | NoS | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | INDIVIDUAL | 1 | 07/2012 | 52207985193 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
