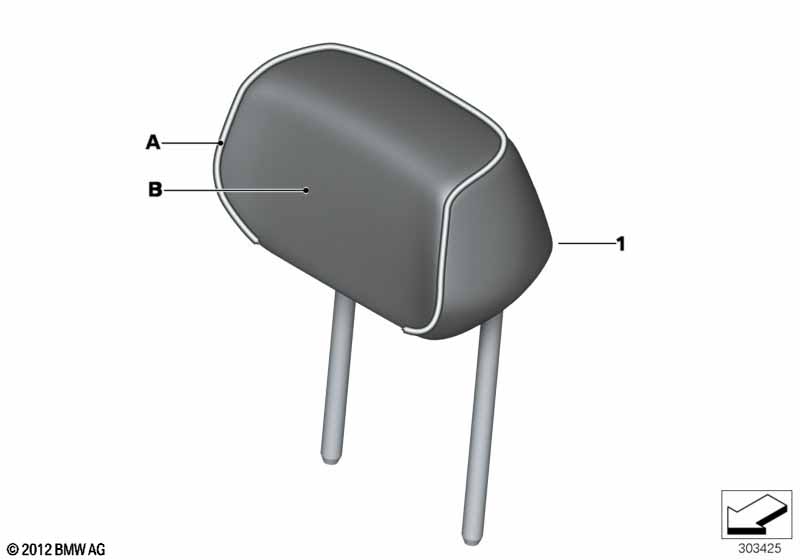

Individual headrest, rear seat, outside for BMW 3 Series F31 320i (2015)
This Individual headrest, rear seat, outside technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number for leather - (B) Color specification for piping --------------------------- Version: only in leather Merino For vehicles with special trim (without colour statement) or Indi. leather extended/gold-braun or Indi. leather, extended/kaschmir-beige or Indi. leather, extended/kaschmir-beige or Indi. leather expanded / muskat or Indi. leather extended/opal-weiss or Indi. leather extended/opal-weiss or Indi. leather, extended/amaro-braun or Indi. leather extended/black or Indi. leather extended/black or Indi. leather expanded /"cohiba" |
Z1XX=Yes ZAG8=Yes ZAKO=Yes ZAKS=Yes ZAML=Yes ZAOO=Yes ZAOW=Yes ZAP5=Yes ZASM=Yes ZASW=Yes ZAWT=Yes |
||||||||
| For vehicles with Rear-seat headrests, folding |
S5DCA=No |
|||||||||
| 01 | Headrest, rear leather | INDIVIDUAL | 2 | 07/2012 | 52207985080 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
