Indiv.lateral trim panel, leather for BMW 4 Series F33 435i (2016)

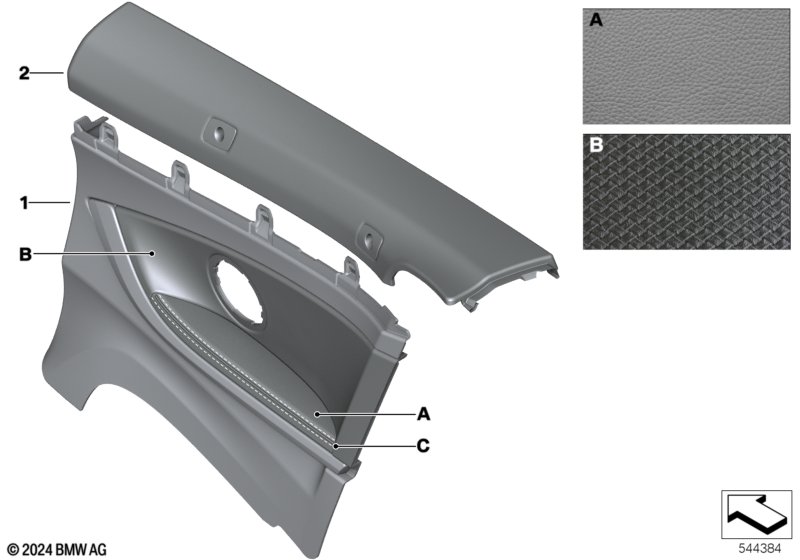

This Indiv.lateral trim panel, leather technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 435i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. --------------------------- - (A) Part number for leather - (B) Part number for braided leather - (C) Color designation for threads For vehicles with Indi. expanded leather equipment or special trim (without colour statement) |
ZA=Yes Z1XX=Yes |
||||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 51437989839 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 51437989840 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | INDIVIDUAL | 1 | 51437989841 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | INDIVIDUAL | 1 | 51437989842 | NoS | Shop at ECS Tuning | ||||
| 02 | Waistrail, leather, rear left | SCHWARZ | 1 | 51438057809 | Shop at ECS Tuning | |||||
| 02 | Waistrail, leather, rear right | SCHWARZ | 1 | 51438057810 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
