Individual cover, leather, seat rear for BMW 4 Series F32 418i (2017)

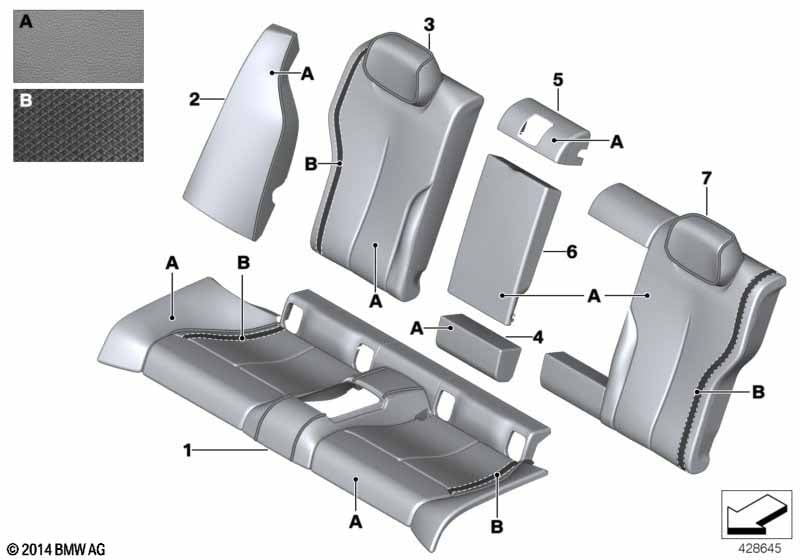

This Individual cover, leather, seat rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 418i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) Part number for leather - (B) Color specification for piping For vehicles with special trim (without colour statement) or Indi. leather extended/gold-braun or Indi. leather, extended/kaschmir-beige or Indi. leather, extended/kaschmir-beige or Indi. leather expanded / muskat or Indi. leather extended/opal-weiss or Indi. leather extended/opal-weiss or Indi. leather extended/black or Indi. leather extended/black |
Z1XX=Yes ZAG8=Yes ZAKO=Yes ZAKS=Yes ZAML=Yes ZAOO=Yes ZAOW=Yes ZASM=Yes ZASW=Yes |
||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 52207986209 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover side section leather left | INDIVIDUAL | 1 | 52207986217 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover side section leather right | INDIVIDUAL | 1 | 52207986218 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest, leather, rear right | INDIVIDUAL | 1 | 52207986214 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 03 | Cover backrest, leather, rear left | INDIVIDUAL | 1 | 52207986213 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover, backrest, leather, center lower | INDIVIDUAL | 1 | 52207986210 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover, backrest, leather, center upper | INDIVIDUAL | 1 | 52207986211 | NoS | Shop at ECS Tuning | ||||
| 06 | Armrest, leather, rear center | INDIVIDUAL | 1 | 52207985188 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=No |
|||||||||
| 06 | Armrest, leather, rear center | INDIVIDUAL | 1 | 52207985203 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 07 | Cover backrest, leather, rear left | INDIVIDUAL | 1 | 52207986215 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
