Individual wood 'Sycamore redbrown dark' for BMW 6 Series F13 LCI 650i (2017)

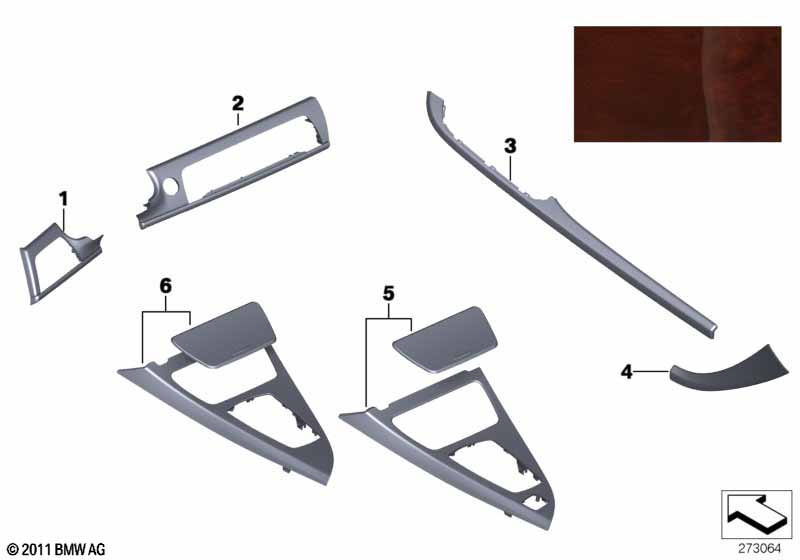

This Individual wood 'Sycamore redbrown dark' technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. --------------------------- For vehicles with special equipment BMW Individual or Indi. fine wood sycamore red-brown dark |
S940A=Yes SXE5A=Yes |
||||||||
| 01 | Wood panel, instrument panel, left | PLATANE-ROTBR. | 1 | 09/2011 | 51458032865 | NoS | Shop at ECS Tuning | |||
| 02 | Wood panel, instrument panel, center | PLATANE-ROTBR. | 1 | 09/2011 | 51458032877 | NoS | Shop at ECS Tuning | |||
| 03 | Wooden strip, door front left | PLATANE-ROTBR. | 1 | 09/2011 | 51418032847 | NoS | Shop at ECS Tuning | |||
| 03 | Wooden strip, door front right | PLATANE-ROTBR. | 1 | 09/2011 | 51418032848 | NoS | Shop at ECS Tuning | |||
| 04 | Wooden molding, side trim, left | PLATANE-ROTBR. | 1 | 09/2011 | 51438032859 | NoS | Shop at ECS Tuning | |||
| 04 | Wooden molding, side trim, right | PLATANE-ROTBR. | 1 | 09/2011 | 51438032860 | NoS | Shop at ECS Tuning | |||
| only suitable for use with automatic transmission |
||||||||||
| 06 | Wood cover, center consola | PLATANE-ROTBR. | 1 | 09/2011 | 51168032881 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
