Individual instrument panel, leather for BMW 7 Series G11 LCI 730dX (2020)

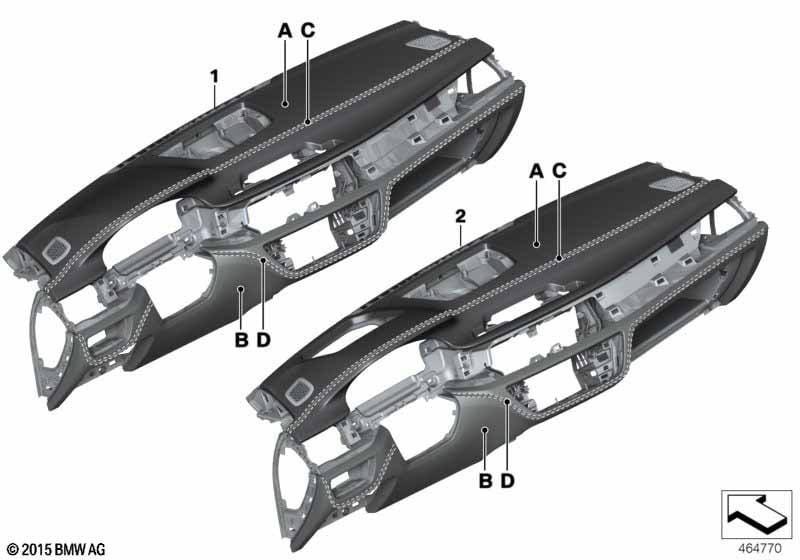

This Individual instrument panel, leather technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) color specification leather upper section - (B) part number leather lower section - (C) color specification thread upper section - (D) color specification thread lower section --------------------------- For vehicles with special trim (without colour statement) or Indi. full leather/caramel or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
Z1XX=Yes ZBCR=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBNQ=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
||||||||
| For vehicles with Driving assistant professional and Head-up display |
S5AUA=No S610A=No |
|||||||||
| 01 | Instrument panel leather | INDIVIDUAL | 1 | 51457991190 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional and Head-up display |
S5AUA=Yes S610A=No |
|||||||||
| 01 | Instrument panel leather | INDIVIDUAL | 1 | 51457994834 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional and Head-up display |
S5AUA=No S610A=Yes |
|||||||||
| 02 | Instrument panel leather | INDIVIDUAL | 1 | 51457991191 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional and Head-up display |
S5AUA=Yes S610A=Yes |
|||||||||
| 02 | Instrument panel leather | INDIVIDUAL | 1 | 51457994836 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
