Individual center console for BMW 7 Series G12 730Li (2018)

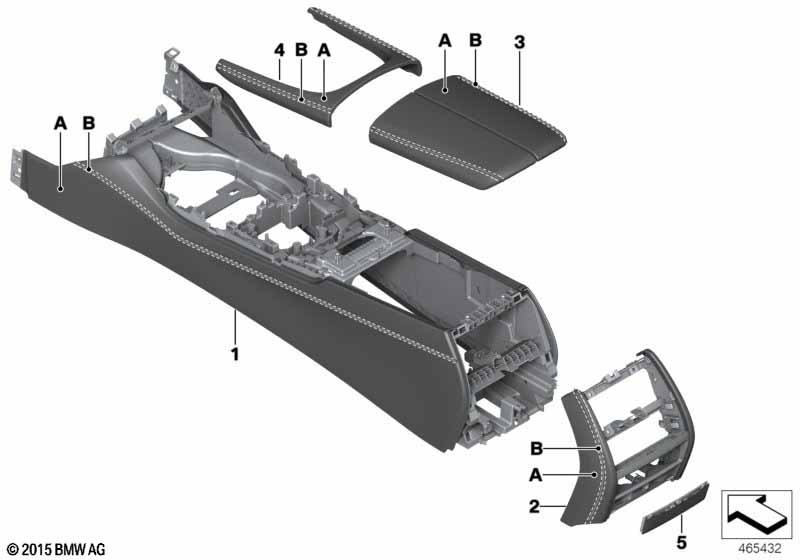

This Individual center console technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread ------------------------------------- |
|||||||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
Z1XX=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBNQ=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 01 | Center console, leather | INDIVIDUAL | 1 | 51167989900 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
P7GZA=No S4F5A=No Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 02 | Cover, center console, leather, rear | INDIVIDUAL | 1 | 51167991192 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Warmth Comfort Package, front and Warmth Comfort Package and special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
S4HBA=No S4HCA=No Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 03 | Armrest in leather, front center | INDIVIDUAL | 1 | 51167992698 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Warmth Comfort Package, front or Warmth Comfort Package and special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
S4HBA=Yes S4HCA=Yes Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 03 | Armrest in leather, front center | INDIVIDUAL | 1 | 51167992699 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 04 | Trim cover, center console, leather | INDIVIDUAL | 1 | 51167991193 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/tartufo |
P7GZA=No S4F5A=No Z1XX=Yes ZBTQ=Yes |
|||||||||
| 05 | Cover, center console, rear | TARTUFO | 1 | 51167991531 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/kaschmir-beige |
P7GZA=No S4F5A=No Z1XX=Yes ZBKS=Yes |
|||||||||
| 05 | Cover, center console, rear | KASCHMIRBEIGE | 1 | 51167991533 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/fiona-rot |
P7GZA=No S4F5A=No Z1XX=Yes ZBFQ=Yes |
|||||||||
| 05 | Cover, center console, rear | FIONAROT | 1 | 51167991535 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/caramel |
P7GZA=No S4F5A=No Z1XX=Yes ZBCR=Yes |
|||||||||
| 05 | Cover, center console, rear | CARAMEL | 1 | 51167991534 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/"black" |
P7GZA=No S4F5A=No Z1XX=Yes ZBNQ=Yes ZBSW=Yes |
|||||||||
| 05 | Cover, center console, rear | SCHWARZ | 1 | 51169384717 | Shop at ECS Tuning | |||||
| For vehicles with Executive lounge and Executive Lounge Fondkonsole and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss |
P7GZA=No S4F5A=No Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 05 | Cover, center console, rear | RAUCHWEIß | 1 | 51167991532 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
